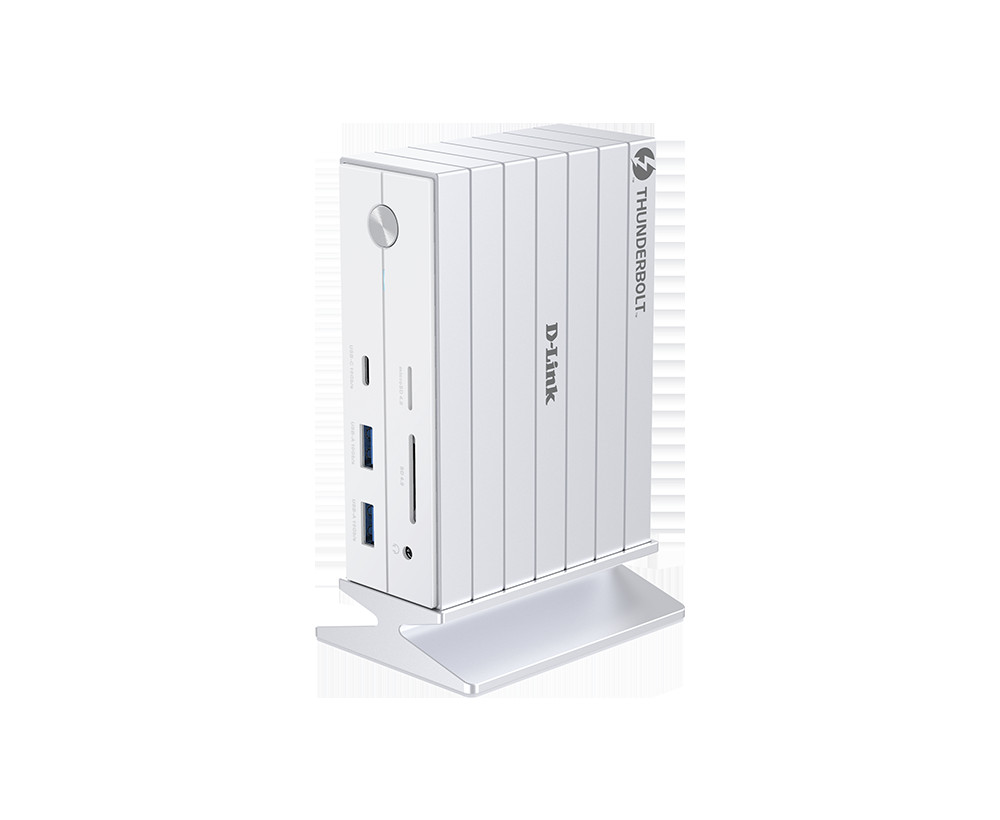

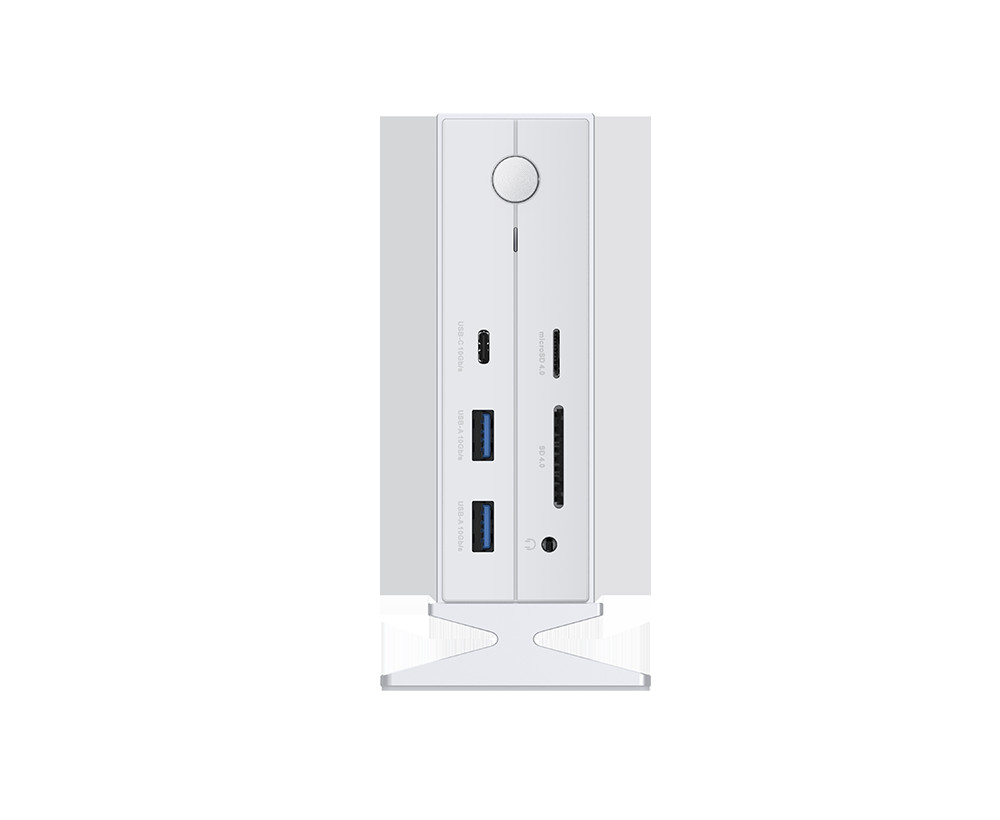

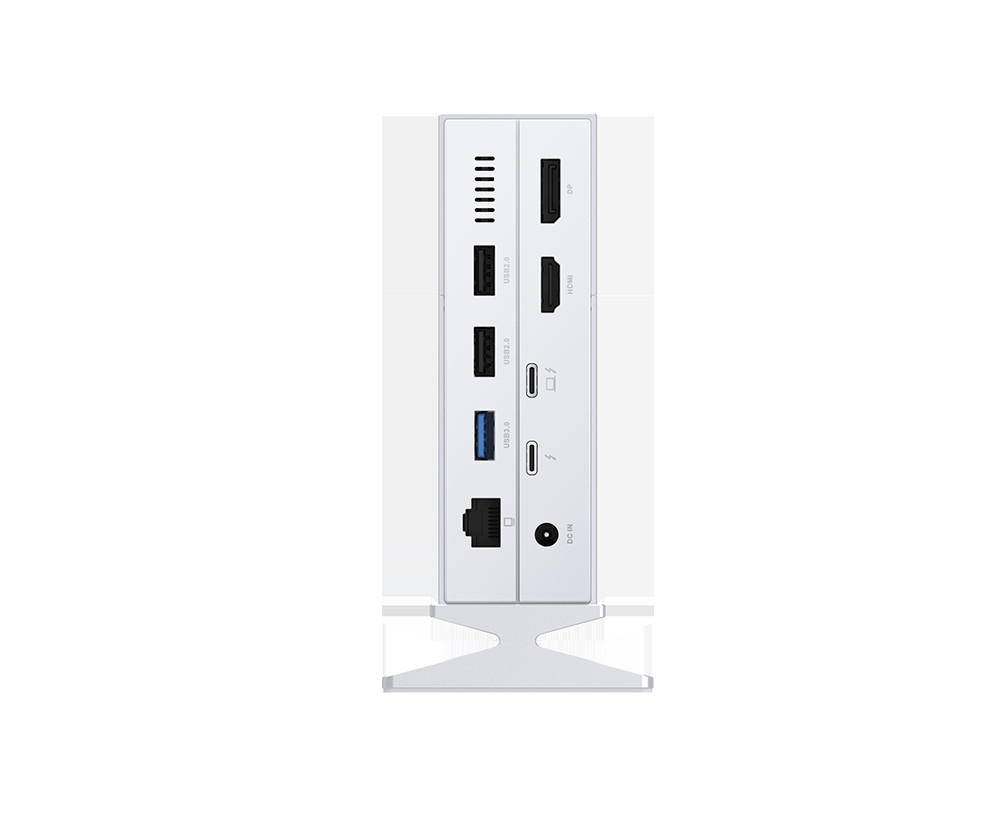

14-in-1 Thunderbolt 4 Docking Station
- Video Ports:
- 1 x HDMI 2.1 (7680x4320@30Hz)
- 1x DP 1.4 (7680x4320@30Hz)
- 1x Thunderbolt 4 (multi-functional connector)
- Network Port:
- 1 x RJ45 (10/100/1000 Base-T)
- USB & Thunderbolt Ports:
- Thunderbolt 4: 40 Gbps with 15W (5V@3A) power output (multi-functional connector)
- 1x USB Type-C 3.1 (10 Gbps)
- 2x USB Type-A 3.1 (10 Gbps)
- 1x USB Type-A 3.0 (5 Gbps)
- 2 x USB Type-A 2.0 (480 Mbps)
- Memory Card Slots:
- SD & microSD card slots: UHS - II ; supports capacity range: 32 GB to 2 TB
- Audio Connector:
- 3.5mm combo audio jack: supports left/right channel and microphone
- Host Connector:
- Thunderbolt 4 (60W): 40 Gbps with USB Power Delivery (PD 3.0) for fast charge of 60W (compatible with USB 4.0)
- Display Resolution
- HDMI 2.1: 8K (7680x4320@30Hz) for single display or 4K (3840 x2160@60Hz) for dual display and triple display
- DP 1.4: 8K (7680x4320@30Hz) for single display or 4K (3840x2160@60Hz) for dual display and triple display
- Thunderbolt 4: 8K (7680x4320@30Hz) for single display or 4K (3840x2160@60Hz) for dual display and triple display
- Resolutions based on DP 1.4 of the input signal of the connected device. If the input signal of the connected device is compatible with DP 1.2, only 4K (3840 x2160@60H) can be supported as the max resolution for all three video interfaces (i.e. USB Type-C, DP port 1 & 2) in single, dual, and triple display configuration.
- Compatible with macOS, Windows 10, Windows 11, and Android
