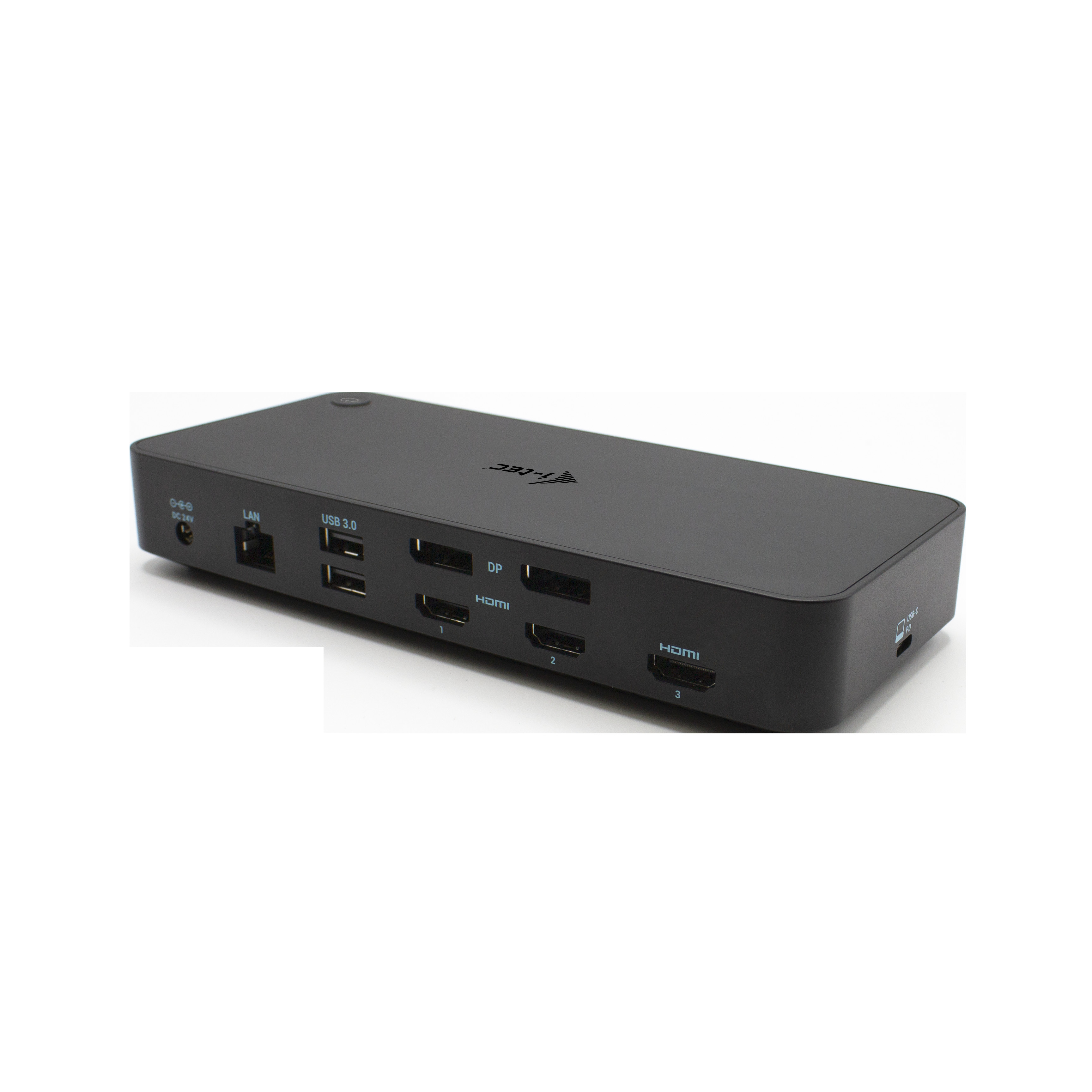

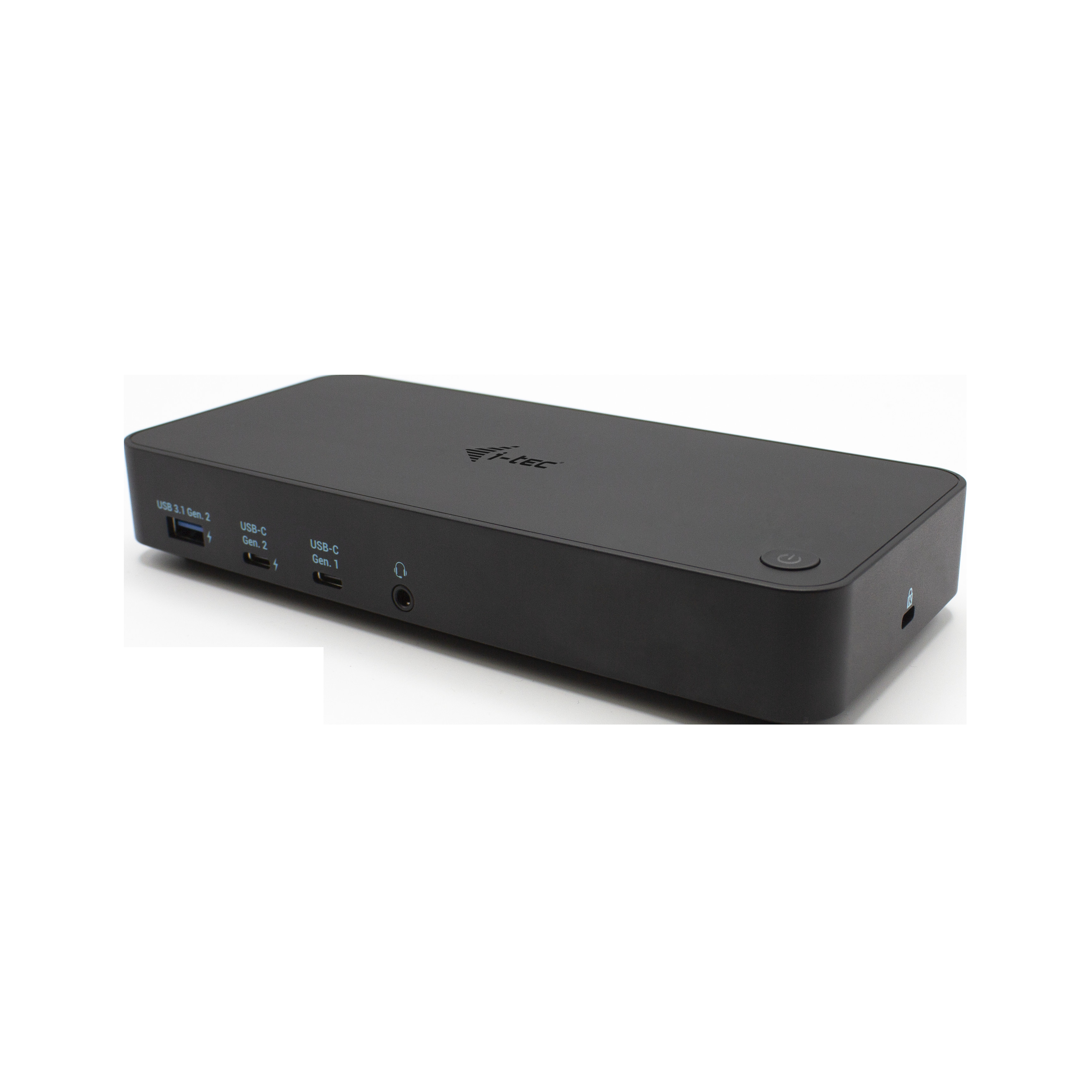

i-tec USB 3.0 / USB-C / Thunderbolt, 3x 4K Docking Station + Power Delivery 100W

A powerful professional docking station that supports output to up to three external monitors in up to 4K high resolution. The dock can be used with virtually any laptop as it supports connection to all common ports: USB 3.0, USB-C and Thunderbolt" 3/4, while supporting all common current operating systems. However, connection to three monitors will only be possible if the laptop has a Thunderbolt" 3/4 port or a USB-C port that supports video transfer (USB-C DP Alt mode). Plenty of USB ports (including those that support speeds of up to 10 Gbps), reliable and fast connection to the corporate network thanks to the integrated LAN port and support for installation behind the monitor all make this docking station the ideal companion for true professionals. Of course, it supports charging of your laptop or tablet, up to 100 W.

• Connect up to 3 external monitors in resolutions up to 4K*
• Power delivery: up to 100 W
• 2 DisplayPort and 3 HDMI ports available*
• 3x USB 3.1 and 2x USB-C allow you to easily connect your USB devices and peripherals (two ports support 10 Gbps speed).
• Gigabit Ethernet RJ-45 provides reliable, robust and high-speed internet connectivity with support for 10/100/1000 Mbps speeds
• Combo jack for audio and microphone
• Kensington lock provides anti-theft protection, especially in shared office environments or public areas
• Docking station power switch allows for maximum power savings
• Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
• Supports Windows 10, macOS, Android and Linux

 *HDMI 3 port will only work when connected to a laptop with Thunderbolt" 3/4 port or USB-C port supporting video transfer (called USB-C DP Alt mode)  If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported

• Maximum-performance docking station for up to three monitors simultaneously
• Dock is compatible with almost any current laptop (connects via USB 3.0, USB-C or Thunderbolt™ 3/4 ports)
• Supports high 4K resolution with refresh rates up to 60 Hz
• 3x USB 3.1 and 2x USB-C allow you to easily connect your USB devices and peripherals (two ports support 10 Gbps speeds)
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps, providing a robust and high-speed internet connection.
• The combined 3.5mm audio/mic port can connect, for example, integrated headphones with microphone
• The docking station supports up to 100W of power to a connected laptop or tablet
• The dock is compatible for vertical mounting behind a monitor with VESA mounting support

• 1x USB-C port for connection to USB-C or USB-A devices (USB-C cable and USB-C to USB 3.0 adapter included)
• Docking station technology: DisplayLink + USB-C DP Alt mode + USB-C PD
• Power Delivery: 100 W

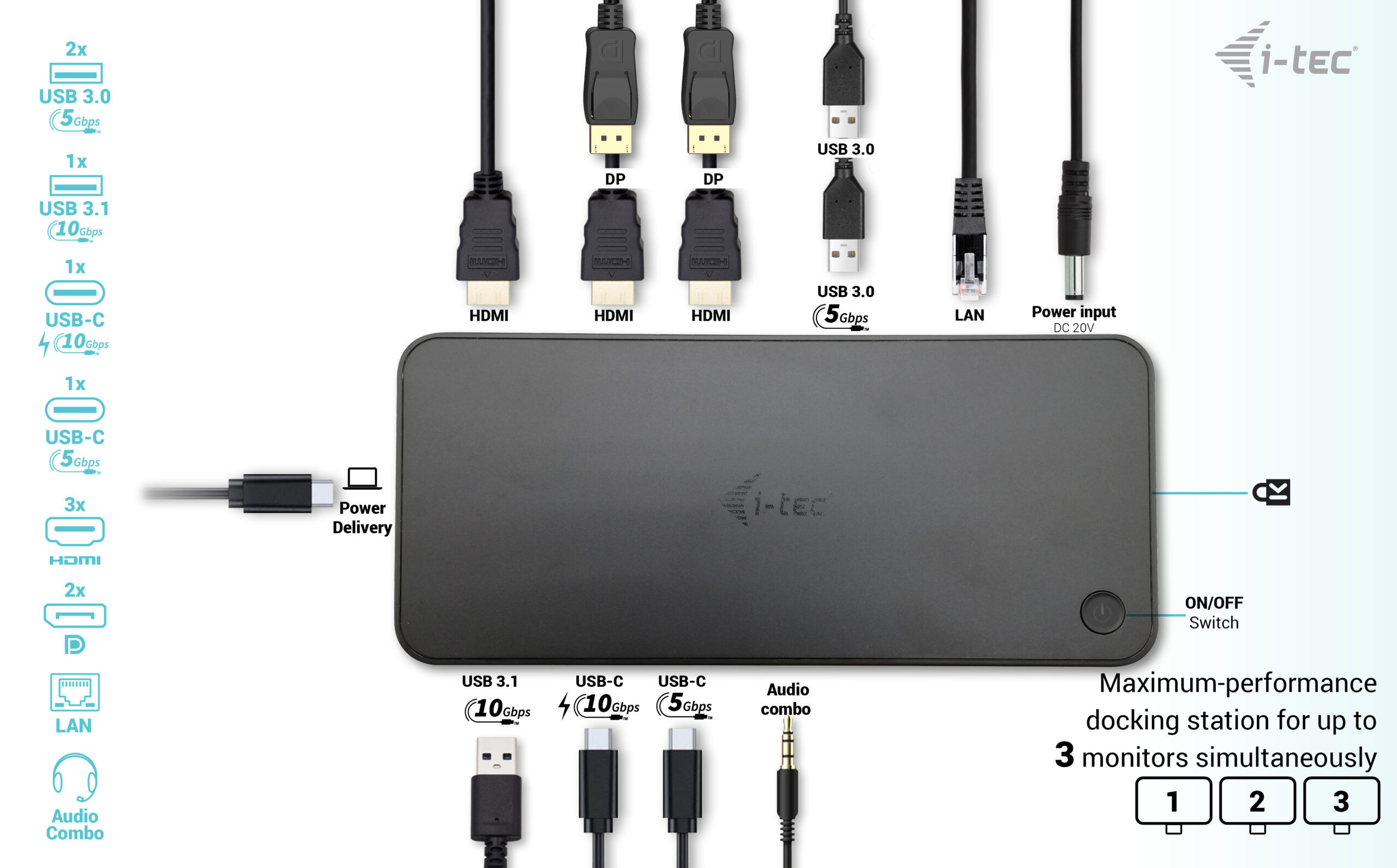

• Video Ports:
  • 2x DisplayPort (DP++ support)
  • 3x HDMI
• Resolution:
  • 1 monitor - 1x DP - up to 4K/60Hz
  • 1 monitor - 1x HDMI 1/2- up to 4K/60Hz
  • 1 monitor - 1x HDMI 3 - up to 4K/30Hz
  • 1 monitor - 1x HDMI 3 - up to 1080p/120Hz
  • 1 monitor - 2x DP - up to 5K/60Hz*
  • 2 monitors - 2x DP + 1x HDMI 3 - up to 5K/60Hz and 4K/30Hz*
  • 2 monitors - 1x DP/HDMI 1/2 + 1x DP/HDMI 1/2 - up to 2x 4K/60Hz
  • 2 monitors - 1x DP/HDMI 1/2 + 1x HDMI 3 - up to 4K/60Hz and 4K/30Hz
  • 3 monitors - 1x DP/HDMI 1/2 + 1x DP/HDMI 1/2 + 1x HDMI 3 - up to 2x 4K/60Hz + 4K/30Hz

• 1x USB-C port gen. 1 (data only)
• 1x USB-C port gen. 2 (data only) with Fast Charge support (BC 1.2)
• 1x USB 3.1 port gen. 2 with Fast Charge support (BC 1.2)
• 2x USB 3.0 port
• 1x Ethernet GLAN RJ-45 port (DisplayLink DL6950)
• 1x 3.5mm Combo Audio port
• 1x power input (DC 24V/5,41A)
• ON/OFF switch to turn the docking station on and off
• LED indication
• MAC Address cloning: Yes (using i-tec Docker Pro software)
• WOL: S1, S2, S3
• Support for Kensington lock
• Support for VESA mounting
• USB-C cable (100 cm)
• OS: Windows 7/8/8.1/10/11, macOS, Linux Ubuntu 14.04 or later, Android 5 or later, Chrome OS R51 or later
• Easy driver installation (Windows, MacOS, Ubuntu, Android (external link))
• Product dimensions: 191 x 85 x 31 mm
• Product weight: 341 g
• Package dimensions: 215 x 260 x 48 mm
• Package weight: 1700 g

 Hardware Requirements:

• Device with a free USB-A, USB-C, USB4 or Thunderbolt™ 3/4 port

Power Delivery Requirements:

• Device with a free USB-C, USB4 or Thunderbolt™ 3/4 port with Power Delivery support

HDMI 3 output requirements:

• Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or a Thunderbolt™ 3/4 port

Operating System:

• Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

 * 5K resolution is supported only by Windows  If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported

PACKAGE CONTENTS

• Product
• Power adapter 130W
• USB-C to USB-C/USB-A cable (100cm)
• Manual
