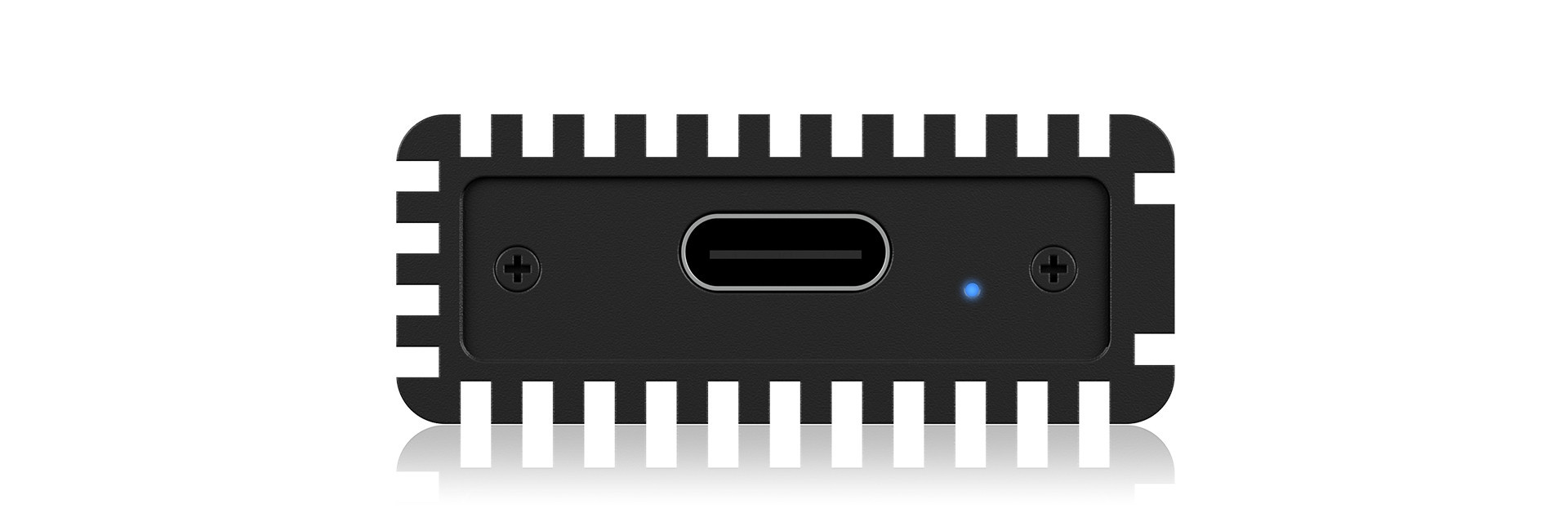

External Type-C™ enclosure for M.2 NVMe SSD

Features:

• Interface to host computer: USB 3.1 (Gen 2) Type-C™, up to 10 Gbit/s
• Supports PCIe 3.0 x2 transfer rate of up to 1000 megabyte per second
• M-Key socket for NVMe SSDs, 22x30/42/60/80 mm
• Housing made of high-grade aluminium
• LED for power and access
• Supports Windows®, macOS®

M.2 becomes mobile
With the help of the external USB 3.1 Type-C™ enclosure IB-1816M-C31 you can take one NVMe card with you quickly and easily. It allows access to M.2 SSDs of up to 2 TB no matter to which host you connect it. The IB-1816M-C31 is compatible with M.2 cards of 30, 42, 60 and 80 mm length, operating system-independent and suitable for a variety of applications such as high-speed storage, cloning a drive or running a mobile operating system.

USB Type-C™ controller based on NVMe
If you wanted to connect an external case with an M.2 SSD via USB Type-C™ in the past, you were limited to SATA models. The new chipset allows NVMe M.2 SSDs to be connected to a USB 3.1 (Gen 2) Type-C™ host computer and enables the full data transfer rate of up to 1000 MB per second.

Fast on the move
With USB 3.1 (Gen 2) Type-C™ even higher data transfer rates can be achieved. The high transfer rate of up to 10 Gbit/s is ensured by the supplied USB 3.1 Type-C™ cable and only needs a matching end device in the form of a PC, tablet or similar with Windows® or macOS®.

Lightweight aluminium

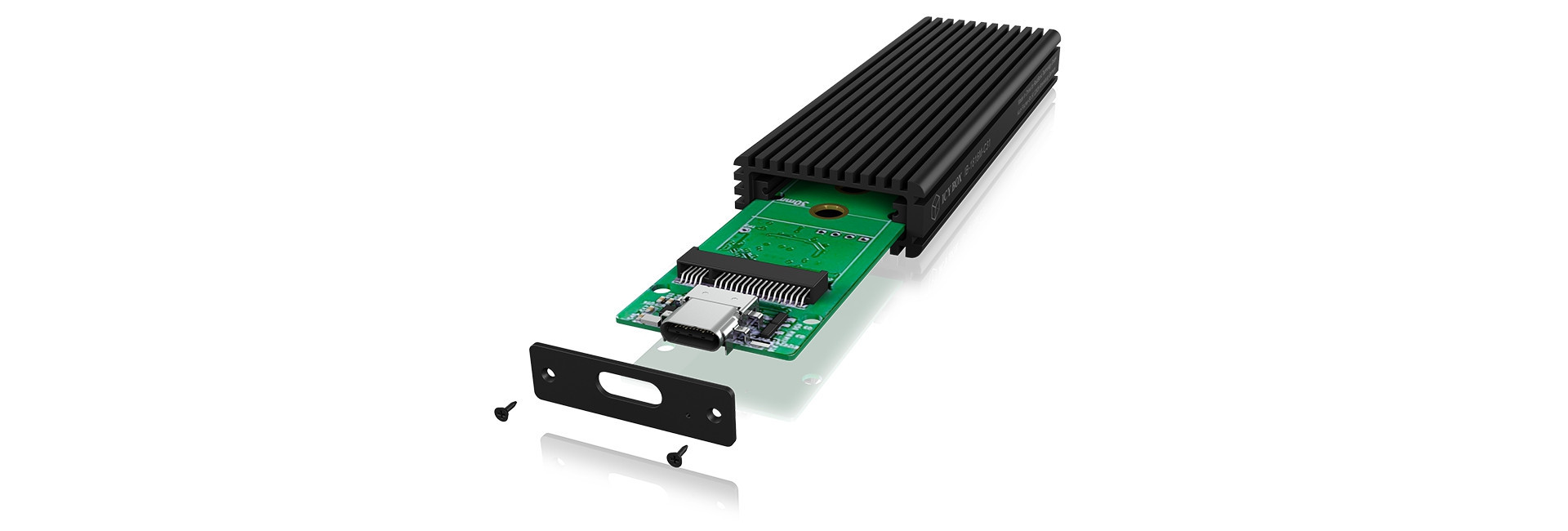

Weighing less than 40 g, the IB-1816M-C31 features a sleek, compact, and crush-resistant aluminium enclosure that safeguards the M.2 SSD against shock and vibration. Its grooved finned heatsink design supports heat dissipation for an excellent cooling effect and protects the SSD from overheating and thermal throttling even under heavy use.

Box content:
1x IB-1816M-C31, 1x Type-C™ to Type-C™ cable (45 cm length), 1x Type-C™ to Type-A cable (45 cm length), 1x Screwdriver, 1x Screws set, 2x Cover panels, 1x Quick installation guide
