TILTA Nucleus Nano II Control Handle

• Nucleus Support Accommodates Control for Nucleus Nano II, Nucleus M and Nucleus Nano
• Dual Motor Control via Focus Dial and Motor Compatible Joystick
• Expanded Power for the Nano II Hand Wheel via the NATO Mount Contact Pins
• Mounting Points Perfect for Shoulder Rig Setups or for Mounting External Monitors
• Gimbal Ready Capability Supports DJI RS2 and RS3 Pro via Optional Wireless Receiver Module

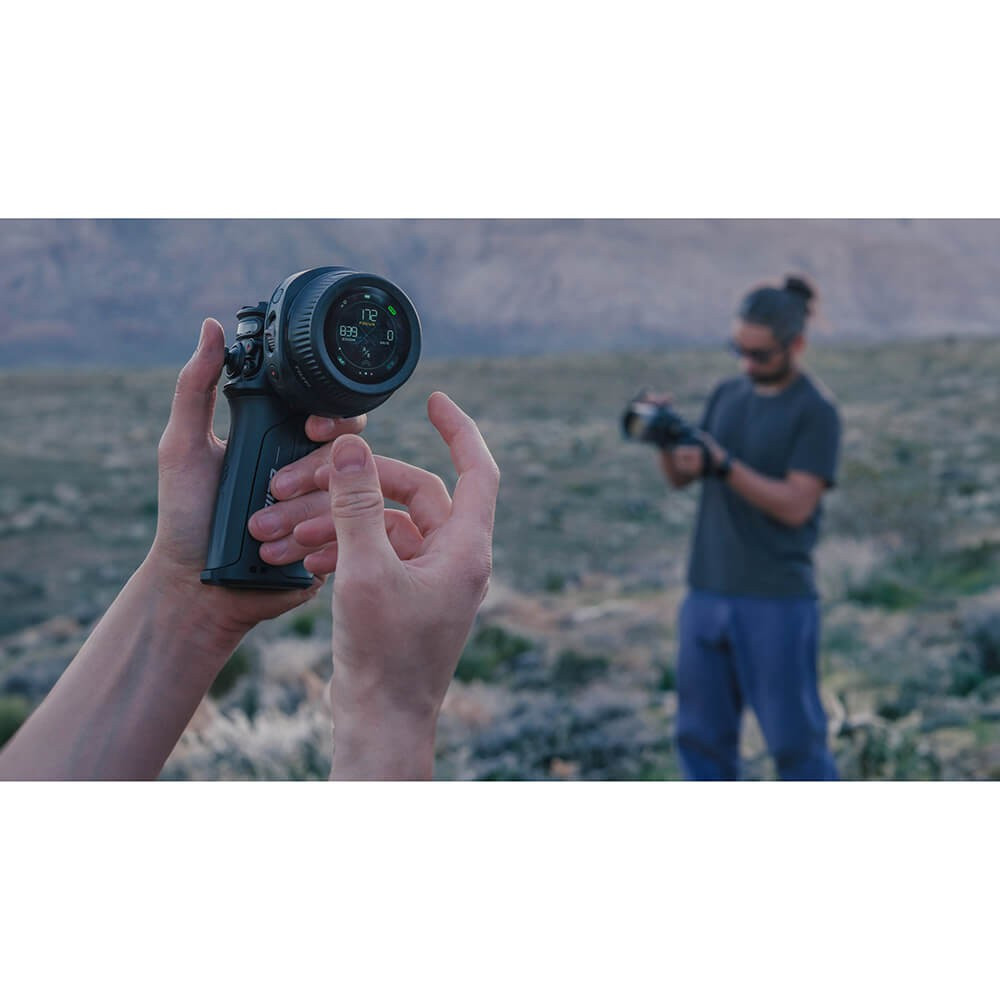

Experience unparalleled flexibility with the Nano II’s ability to handle up to 4 motors for Focus, Iris, Zoom, and Mirage VND when using this Control Handle and the Hand Wheel!

This handle powers from a Sony L-Series Battery (F550/570) and can send power to the Nucleus Nano II Hand Wheel for extended battery life.

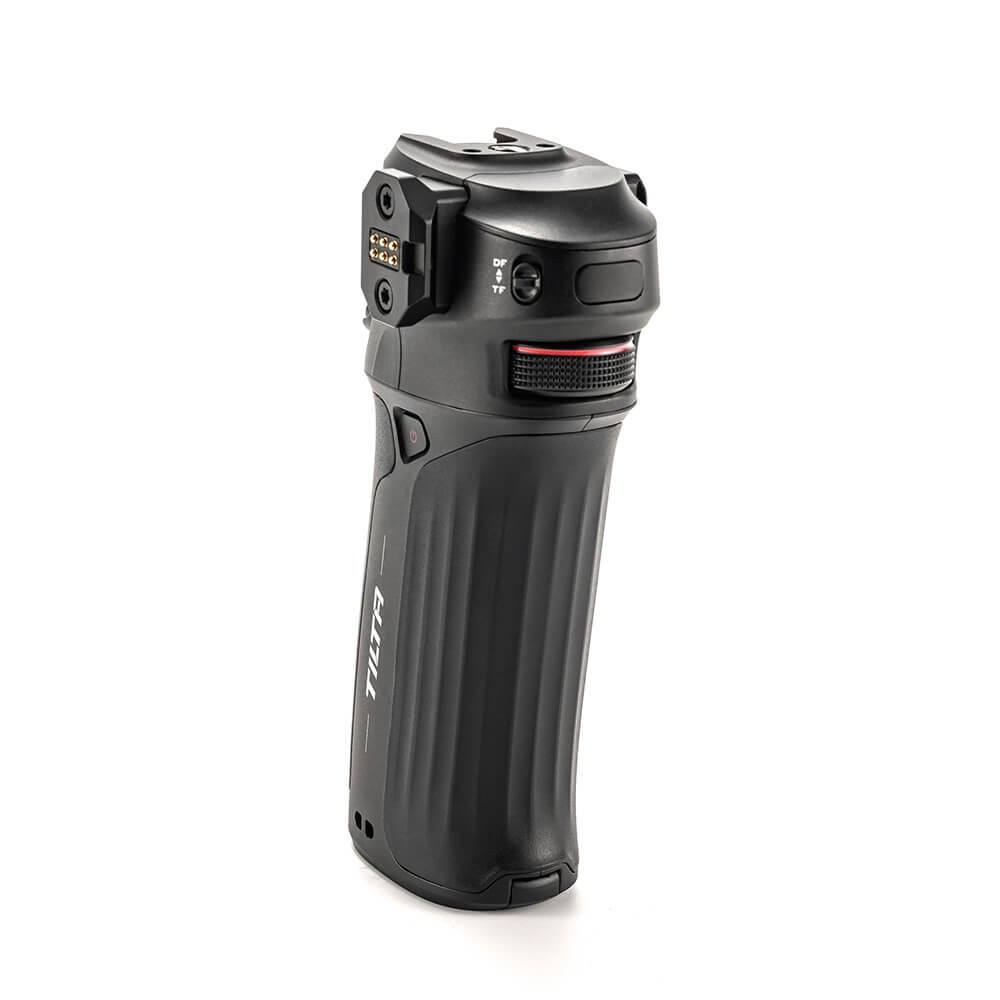

The Control Handle features a focus dial on the front that can be used to control both Nucleus Series Motors and the DJI Focus Motor via the optional Wireless Receiver Module.

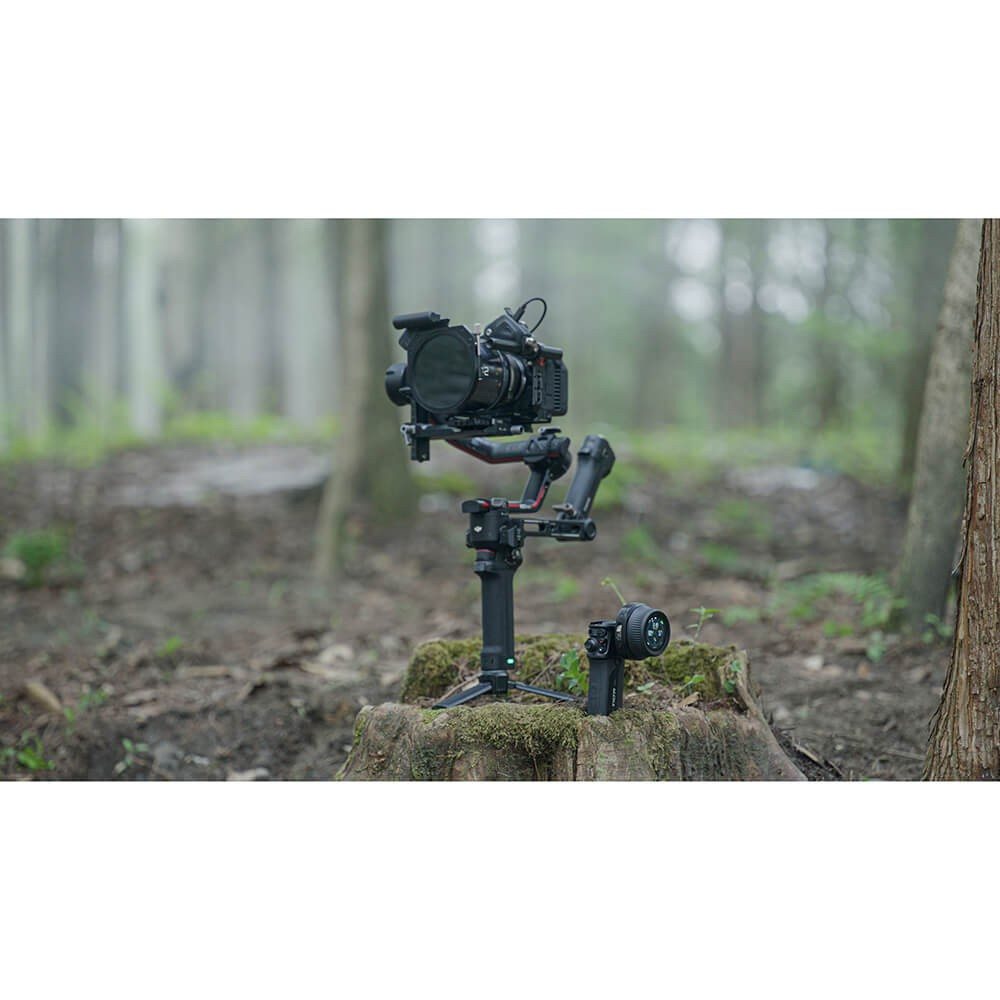

This Wireless Receiver Module (not included) can also be utilized in order to connect this handle to the DJI RS2 or RS3 Pro in order to wirelessly operate it.

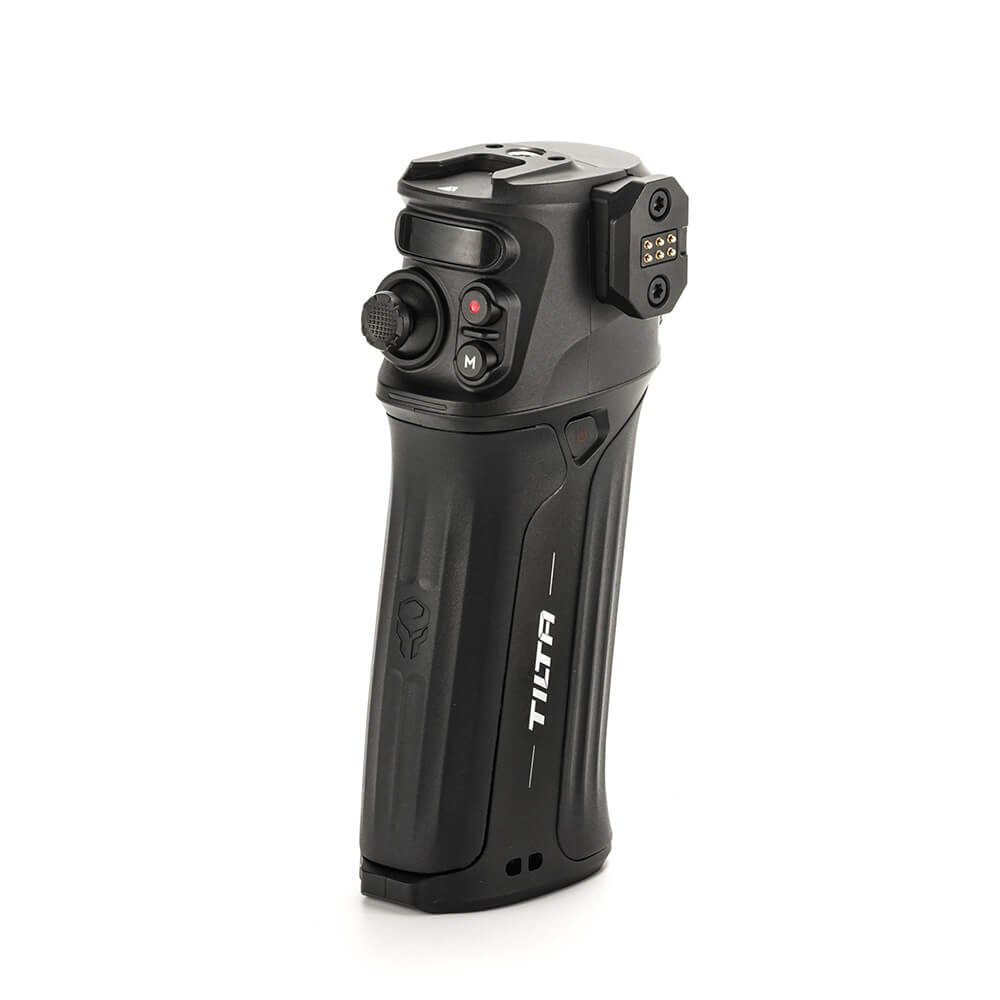

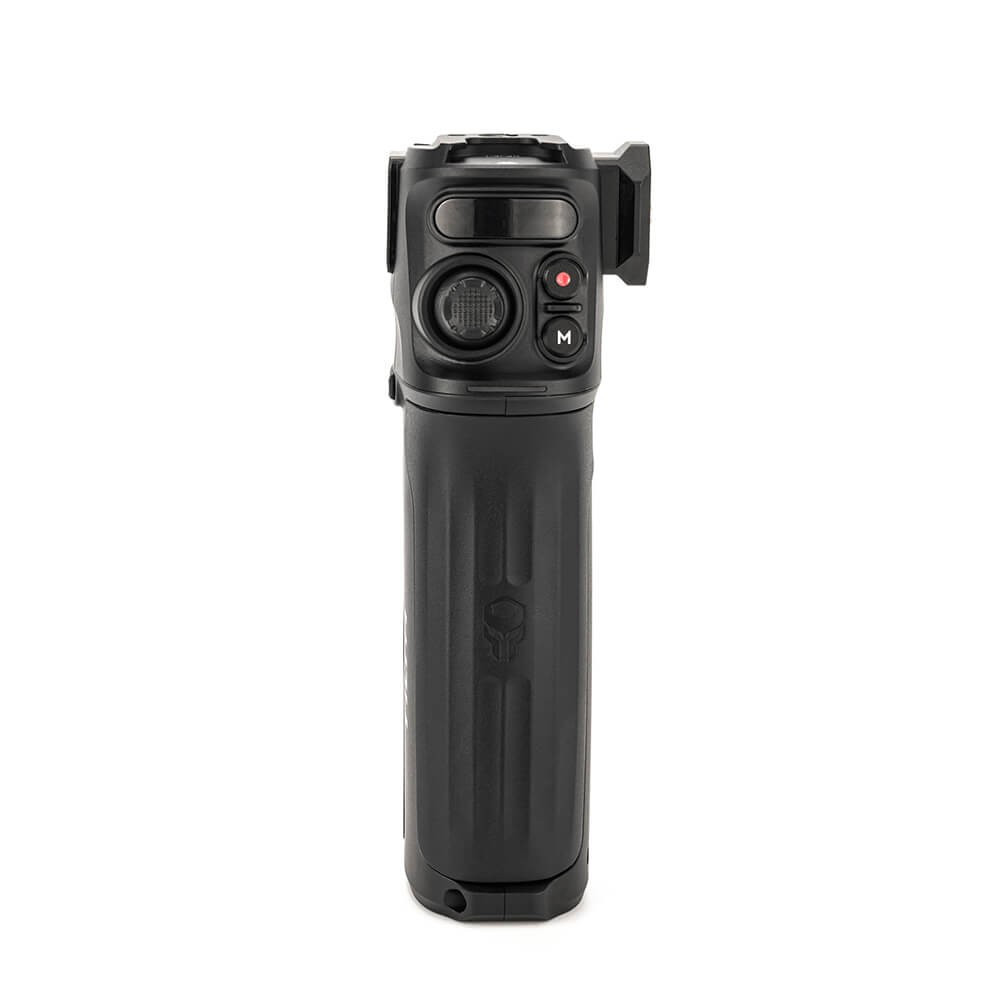

The handle can be used independently of the Nano II Hand Wheel and can control two Nucleus Series Motors via the Focus Dial and the Joystick, when not controlling a gimbal.

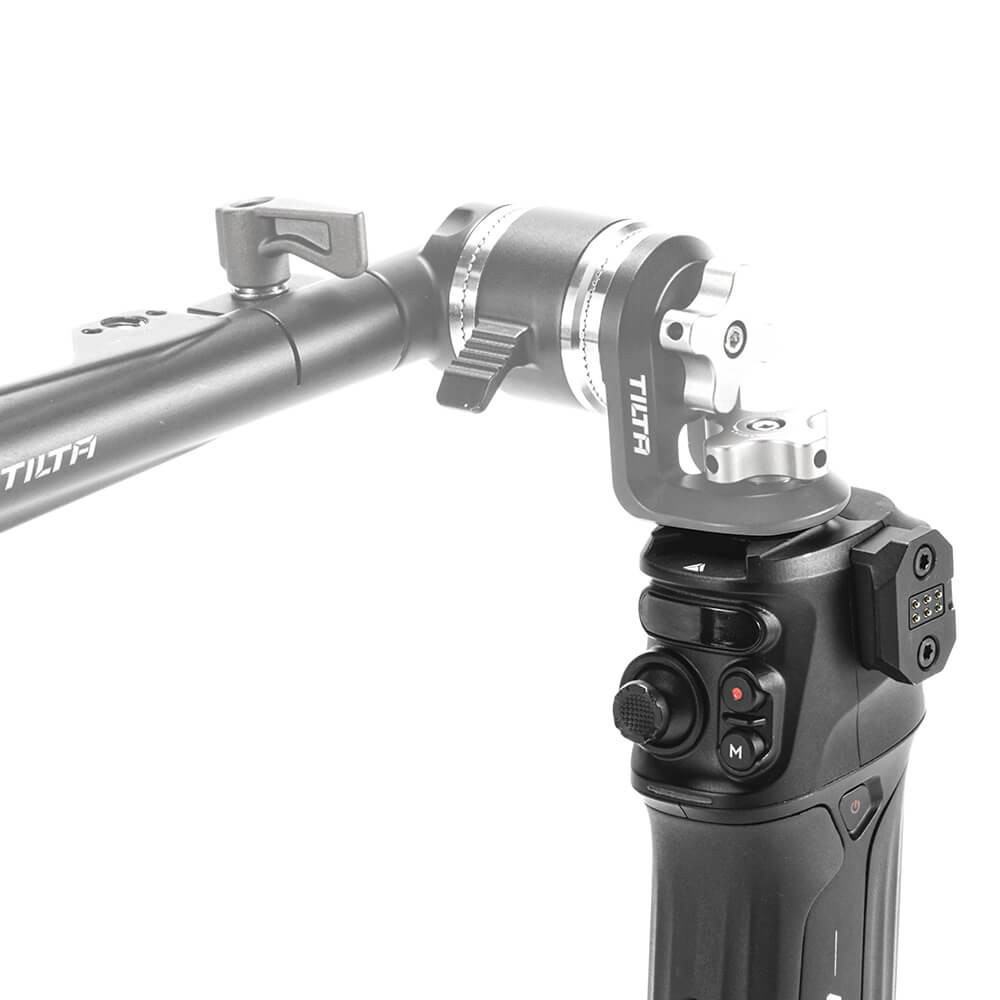

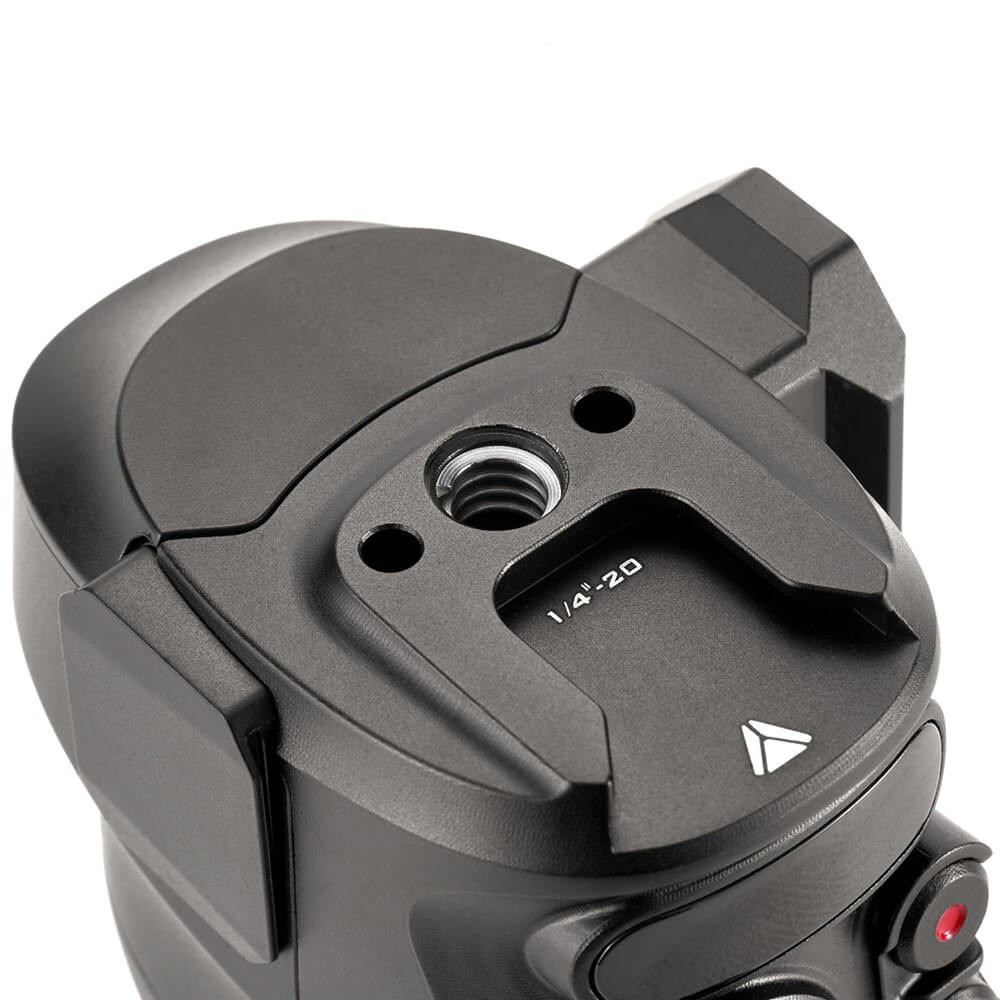

The handle features a 1/4″-20 thread with locating points, perfect for mounting our Right Angle Rosette Adapter in order to easily integrate this handle into a shoulder rig setup.

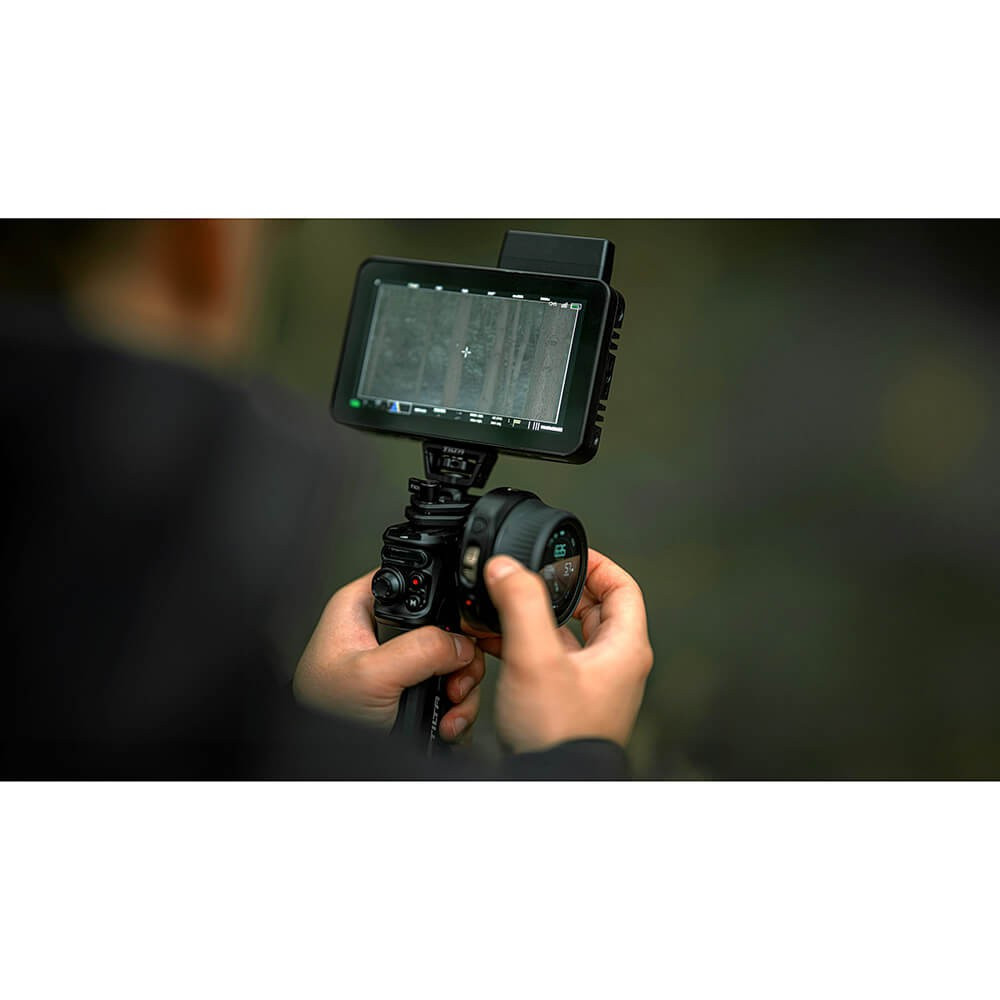

The top of the handle also features a cold shoe receiver, which can be used with our optional Cold Shoe Mount for an external monitor in order to create the perfect focus pulling station when used with the Hand Wheel.

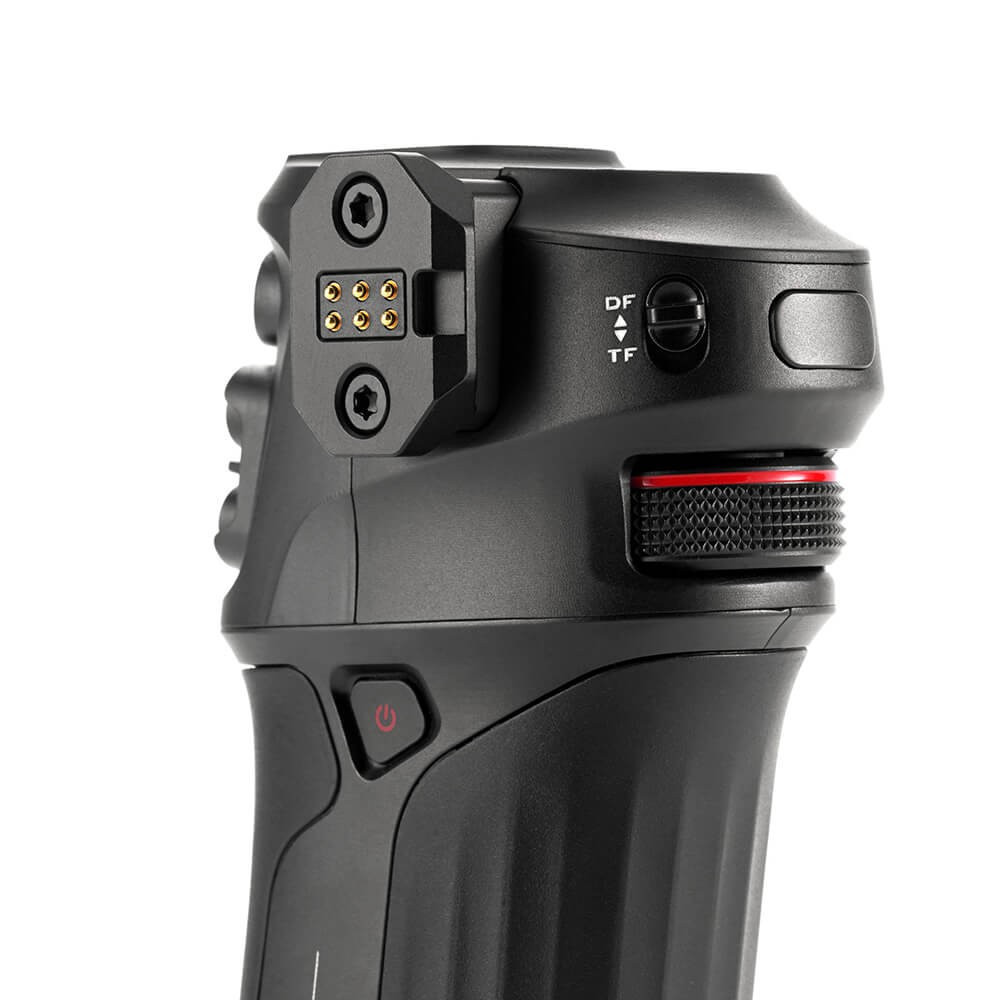

NOTE: The NATO Mount is only intended for the Nano II Hand Wheel. Do not connect other accessories via this NATO mount or you will risk damaging the contact pins.

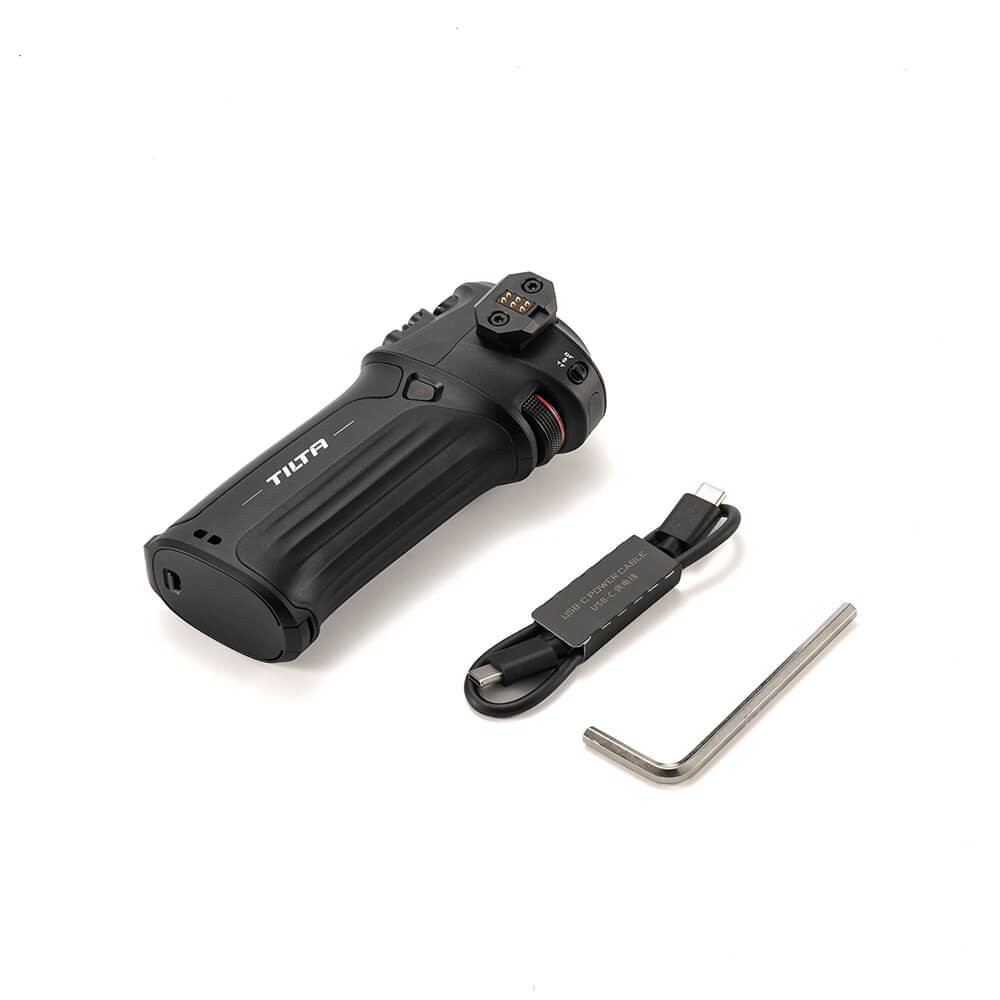

Packing List
1：Nucleus Nano II Control Handle
2：USB-C Power Cable (30cm) （21114.00061.00.00）*1
3：Instruction Manual *1
4：Alley Key（32123.00071.00.00） *1
