SWIT S-1073F 7" FullHD 3G-SDI/HDMI

Varenummer: 229040
Produsent: SWIT
EAN-nummer: 6948193502441
Vekt:360 gram

Antall på lager:1 stk
Sendes om: 2-3 dager

10 959,-

13 699,- Inkl. Mva.

Bestillingsvare - Produktet kan ikke bli returnert eller kansellert etter ordrebekreftelse. Leveringstid kan ikke garanteres. Angreretten gjelder ikke for denne varen.

Gratis frakt for ordre med vareverdi over 400,-.
Gebyr kr. 0

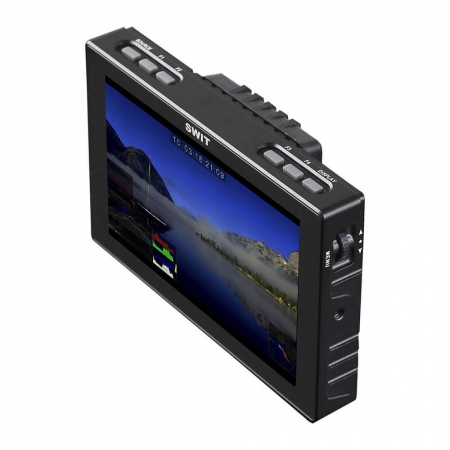

7-inch FHD Camera-top LCD Monitor

  • 7" optical bonding LCD, 1920×1200
  • All metal housing, thinner and robust
  • 2K/3G/HD/SD-SDI input and loop out
  • HDMI input, loop out, converted to SDI out
  • 16-ch Embedded audio meters with alert
  • Select any 2 audio channels to output
  • 9-step quick zoom-in and mapping
  • Red/blue Focus assist and precision adjust
  • Multi-camera logs to Rec709 conversion
  • User 3DLUT cube import via USB stick
  • Waveform, Vector scope, Histogram R/G/B/Y
  • AFD, timecode, H/V delay, Zebra stripes
  • Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
  • False color, R/G/B/Mono, 100% colorbar
  • GPI control and soft Tally display
  • V / Gold mount and various DV plate install
  • USB firmware upgrade

The S-1073F adopts a 7-inch LCD panel with LED back- light, optical bonding technical. The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

S-1073F adopts aluminium alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring

Input/Output Interfaces
S-1073F monitor supports:
2K/3G/HD/SD-SDI input × 2
2K/3G/HD/SD-SDI loop output × 1
HDMI 1.3 input × 1
HDMI 1.3 loop output × 1
HDMI to SDI output × 1 (share SDI loop port)
3.5mm analog audio input × 1
3.5mm analog audio output × 1
GPI/TALLY input × 1
USB × 1 (firmware upgrade)

S-1073F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.

Assign the zoom-in mode to any of the F keys, and enable zoom-in mode. Scroll the menu key you can quickly zoom in the video by the following rates: 1.2x, 1.5x, 1.8x, 2.0x, 2.4x, 2.6x, 2.8x, 3.0x, without black waiting.
Press the menu key to switch to Left/Right mapping function, and press again to switch to Up/Down mapping, and press again to switch to focus assist precision adjustment. (Enable focus assist function first)

S-1073F monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick (via Micro-USB OTG), support 17x17x17 3DLUT cube files

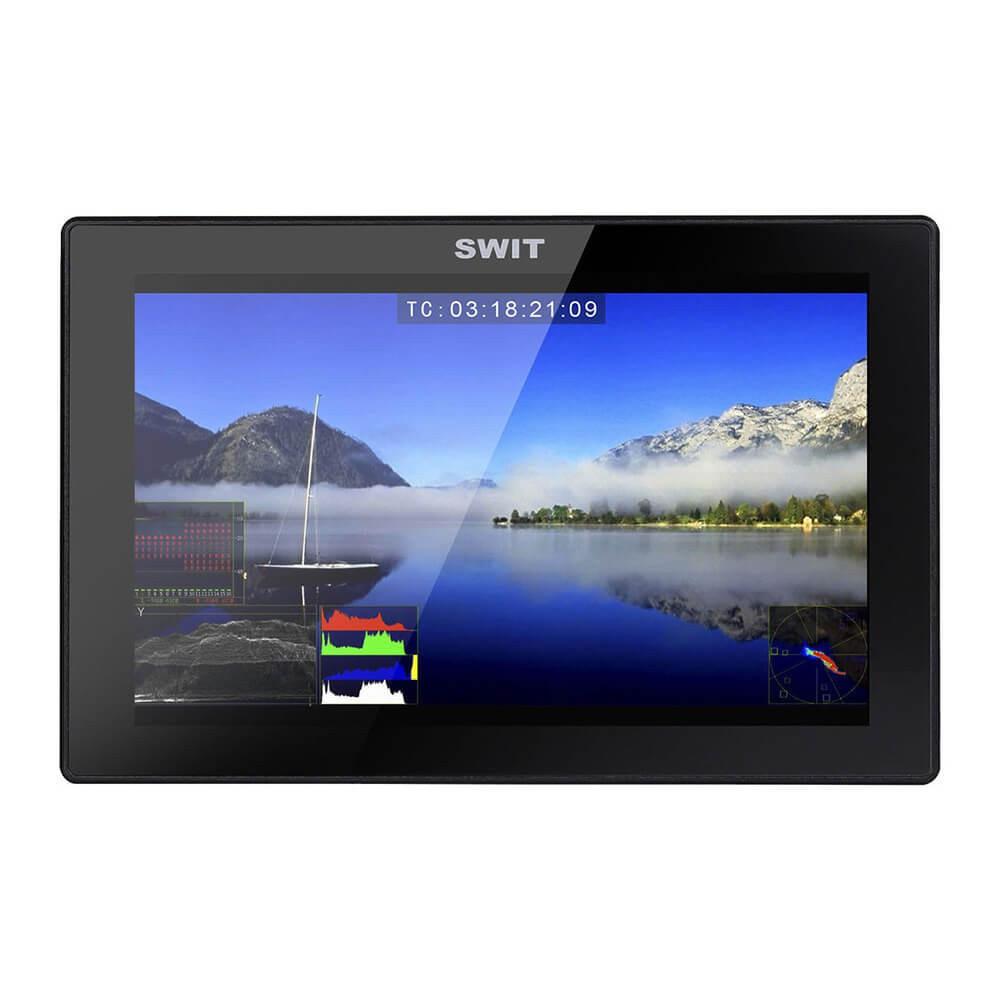

S-1073F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.

S-1073F supports SDI-16ch, HDMI-2ch and analog audio 2-ch audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

S-1073F supports GPI control input via rear RJ45(RS485) port. Users can define the functions for each GPI pins, including Red/Green/Yellow Tally signals.
The monitor screen will display soft Tally signal, which flashes as Red/Green/Yellow according to the GPI settings.

S-1073F has a Revolve/Push Menu button, with one-button operation for menu system. On the top of the monitor there’re 4 user definable function keys, and you can quickly set the functions by long-press the function keys.

The F1-F4 keys support the following functions: Audio meters, Histogram, False color, AFD, H/V delay, R/G/B/Mono, scale markers, Colorbar, UMD, Audio alert, Max backlight, Peaking focus assist, Aspect ratio, Scan mode, Zoom mode, Mute, Freeze frame, Flip, Waveform, Color temperature, Timecode, Zebra, Vector scope.

The monitor provides a standard USB port on the side, for firmware upgrade. Users can download the latest firmware file to a USB stick, and insert into S-1073F monitor to upgrade, without PC connection

S-1073F supports DC 6.5-36V input via a 5.5mm lockable DC socket, and can install SWIT S-7006 series V-mount / Gold mount / DV battery plates to power:

Plate Compatible batteries
S-7006A Gold mount batteries
S-7006S V-mount batteries
S-7006F SONY NP-F970/770
S-7006U SONY BP-U60/U30
S-7006D Panasonic D54/D28
Panasonic VW-VBD58, AG-VBR59
S-7006B Panasonic VW-VBG6
S-7006V JVC BN-VF823
S-7006I SSL-JVC50
S-7006C Canon BP-945/970G
S-7006E Canon LP-E6

For outdoor using, the S-1073F provides a sun hood that is foldable designed and snap-on installation to the monitor

LCD Performance
Size 7 inches
Display area 151.2×94.5mm
Resolution 1920×1200
Aspect ratio 16:9 (4:3 adjustable)
Brightness 400cd/m2
Contrast 1000:1
Color 16.77 million colors
Viewing angle Horizontal: 160°; Vertical: 160°

BNC ×2 2K/3G/HD/SD-SDI input
BNC ×1 CVBS input
HDMI ×1 HDMI 1.3 input
3.5mm ×1 Analog audio input
USB ×1 Firmware upgrade

BNC ×1 2K/3G/HD/SD-SDI loop output or HDMI converted to SDI output
HDMI ×1 HDMI 1.3 loop output
3.5mm ×1 SDI, HDMI embedded audio output and analog audio output

Video Format
2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)

480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)


Input voltage DC / battery 6.5V-36V
Power consumption 12W
Working temperature -10°C~+50°C
Working humidity 10%~90%
Storage temperature -15°C~+60°C
Storage humidity 10%~90%
Dimensions 184×120×33mm
Net weight (main body) 610g
