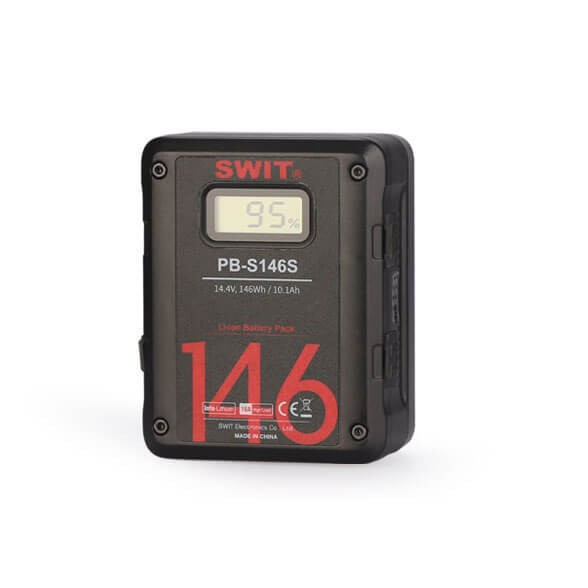

SWIT PB-S146S 146Wh V-lock Cine

SWIT 146Wh Multi-sockets Square Digital Battery Pack

• Square shape design for Cine-cameras
• 146Wh, 10.1Ah larger capacity
• At least 200W, 16A constant high load
• 2× D-tap output sockets (120W/10A in total)
• 1× USB 5V/2A power output sockets
• LCD display accurate remaining run time
• Display power info in both SONY & RED
• Multiple circuit protections

PB-S series camera batteries are compact designed, shorter than normal V/Gold mount batteries, and match perfectly with most of the Cine-cameras.

Consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 146Wh / 10.1Ah high capacity. Can run approx 5 hours for normal 30W cameras.

PB-S146S provides at least 200W/16A high load even at 1% capacity, to drive high power Cine cam- eras and on-camera devices together. The high load cells will also ensure battery life comparing to normal load batteries if long time full load output. Over current protection: 18A.

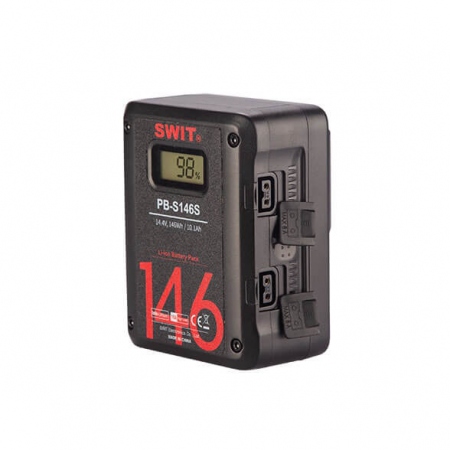

PB-S146S provides 2x D-tap output sockets with 10A/120W load, and 1x USB 5V/2A socket, to power other on-camera devices together.

The build-in LCD can displays remaining power percentage, remaining working time, low power warning, and battery cycle times, and support viewfinder info display on both SONY and RED cameras.

Specifications
Battery plate: V-mount
Nominal voltage: 14.4V
Capacity: 146Wh, 10.1Ah

Max output
In total: 200W
Electrodes: 200W,16A
USB:10W, 5V/2A
D-tap: 120W / 10A

Dimension: 121×95×59mm
Charging Temperature: 0-40°C
Discharging Temperature: -20°C-50°C（Capacity and Max Load may decrease when operating below 0°ï¼‰
Net weight: 0.878kg
Max charging current: 5A
D-TAP socket number: 2
USB socket number: 1
