Tilta RED KOMODO Kit A

• Includes a top plate with a shoe mount
• Four rosette mounts
• 1/4"-20 and 3/8"-16 accessory threads
• Multiple 1/4"-20 mounting threads for optimal balancing on gimbals
• Proprietary adapter plate included for attaching to the optional Tilta 15mm LWS Baseplate for RED KOMODO Cage by quick release

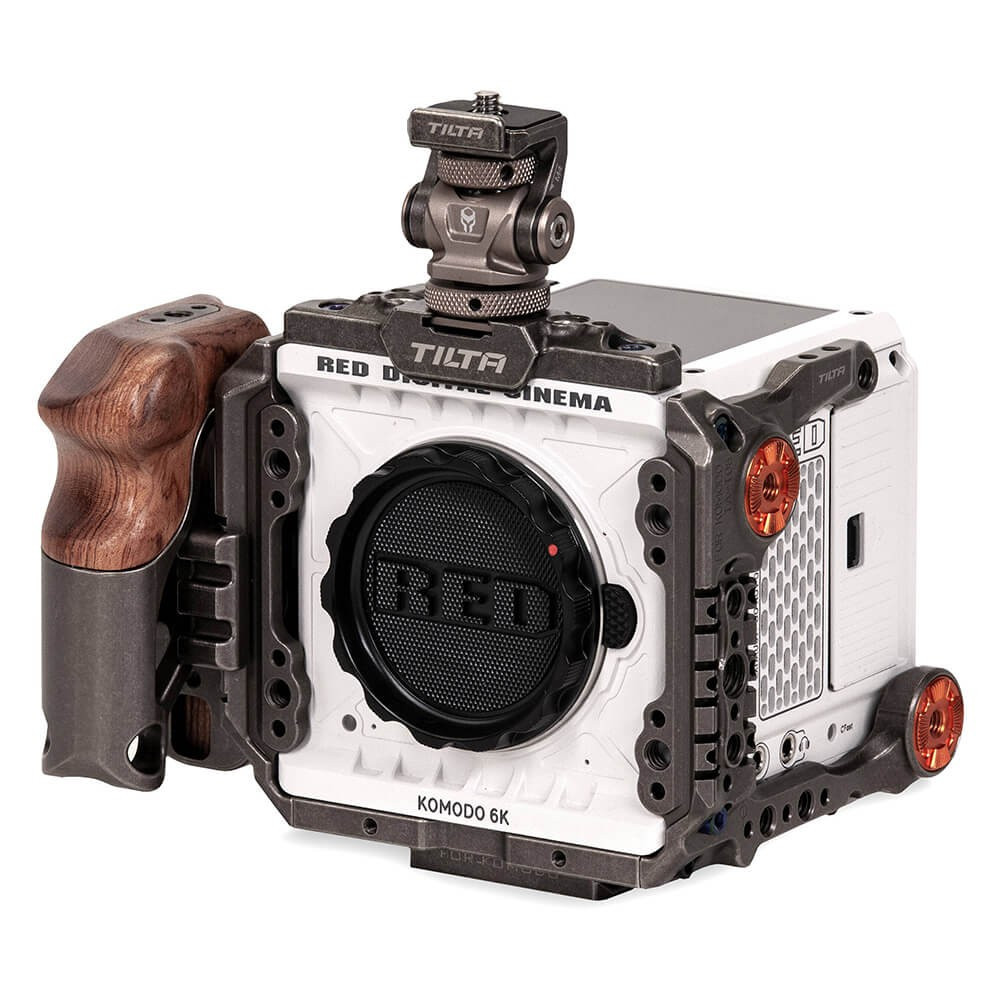

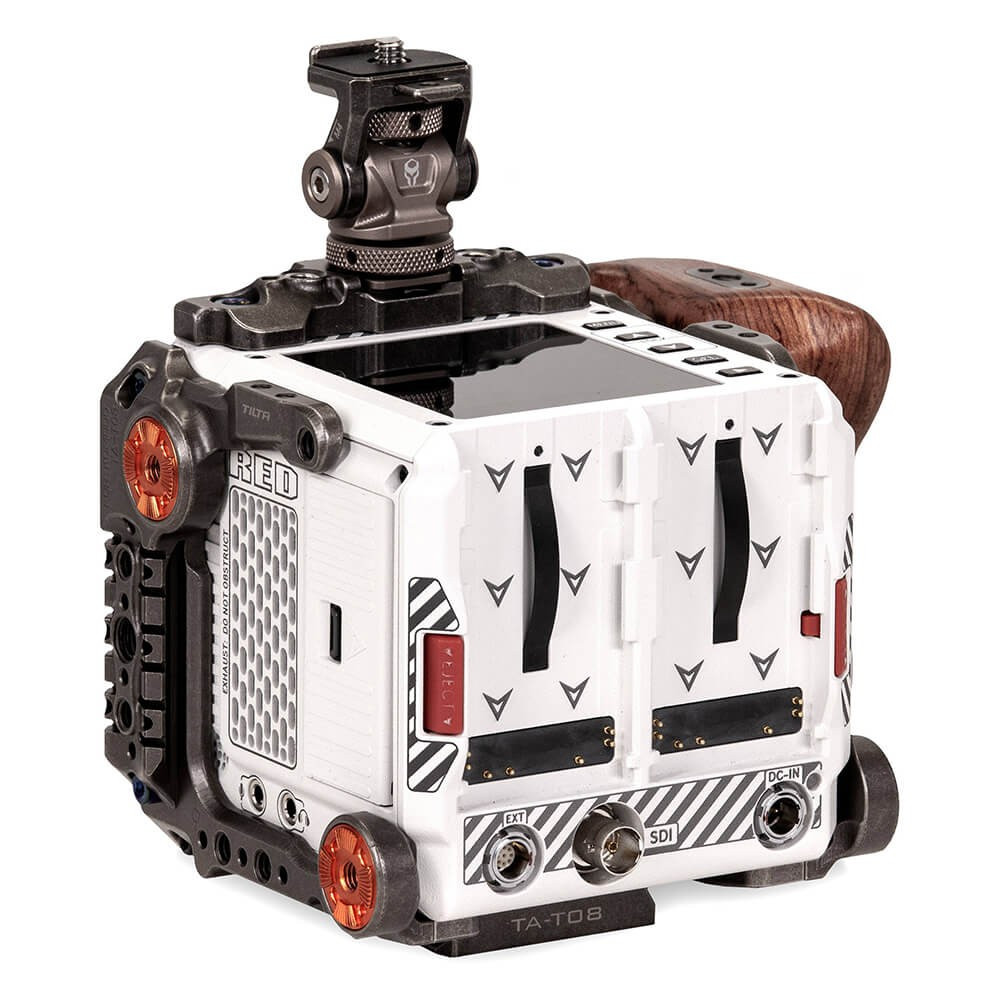

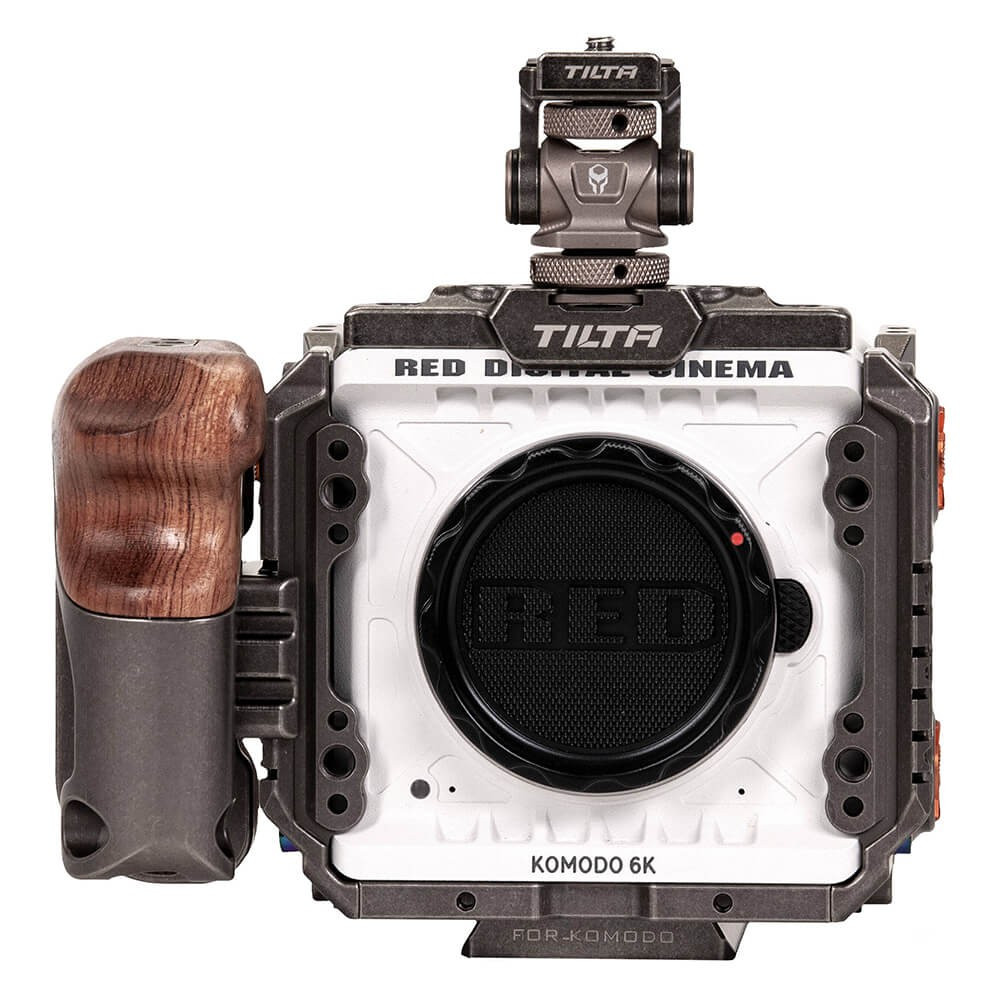

The Tilta Full Camera Cage for RED KOMODO, features connected side panels and a bottom panel, with a top plate that secures directly to the top of the camera and provides a shoe mount and 1/4"-20 threads. Also included is an adapter plate that attaches to the bottom panel and lets you mount the cage on the Tilta 15mm LWS Baseplate for RED KOMODO Cage by quick release. The bottom panel of the cage offers multiple 1/4"-20 mounting threads for optimal balancing on gimbals, and the adapter plate also provides 1/4"-20 threads on the bottom.

The cage offers 1/4"-20 and 3/8"-16 accessory threads all around and a total of four rosette mounts, two on the left side and two on the right. Optional Tilta accessories for this cage include a NATO-mount wooden handle, rotating top handle, 15mm LWS baseplate, tilting monitor mount, and more.

Specifications:
Battery Plate Type None
Accessory Mounting Multiple x 1/4"-20 Thread, Multiple x 3/8"-16 Thread
Tripod Mounting 1/4"-20 Thread
Shoe Mounting Top Handle: 1 x Cold Shoe
Rosettes 4 x ARRI Rosette w/ M6 Thread
Construction Aluminum, Steel
Grip Type Single Handgrip
Hand Orientation Right
Ports None
Rotation None
Built-In Controls None
Accessory Mounting 1 x 1/4"-20 Thread
Camera Mounting None
Tripod Mounting Thread None
Rod Ports None
Shoe Mounting None
Rosettes None
Rail Mounting 1 x NATO Rail
Top Mount 1/4"-20 Male
Bottom Mount Cold Shoe
Material of Construction Aluminum, Stainless Steel
