Camera Cage for Sony a6 Series

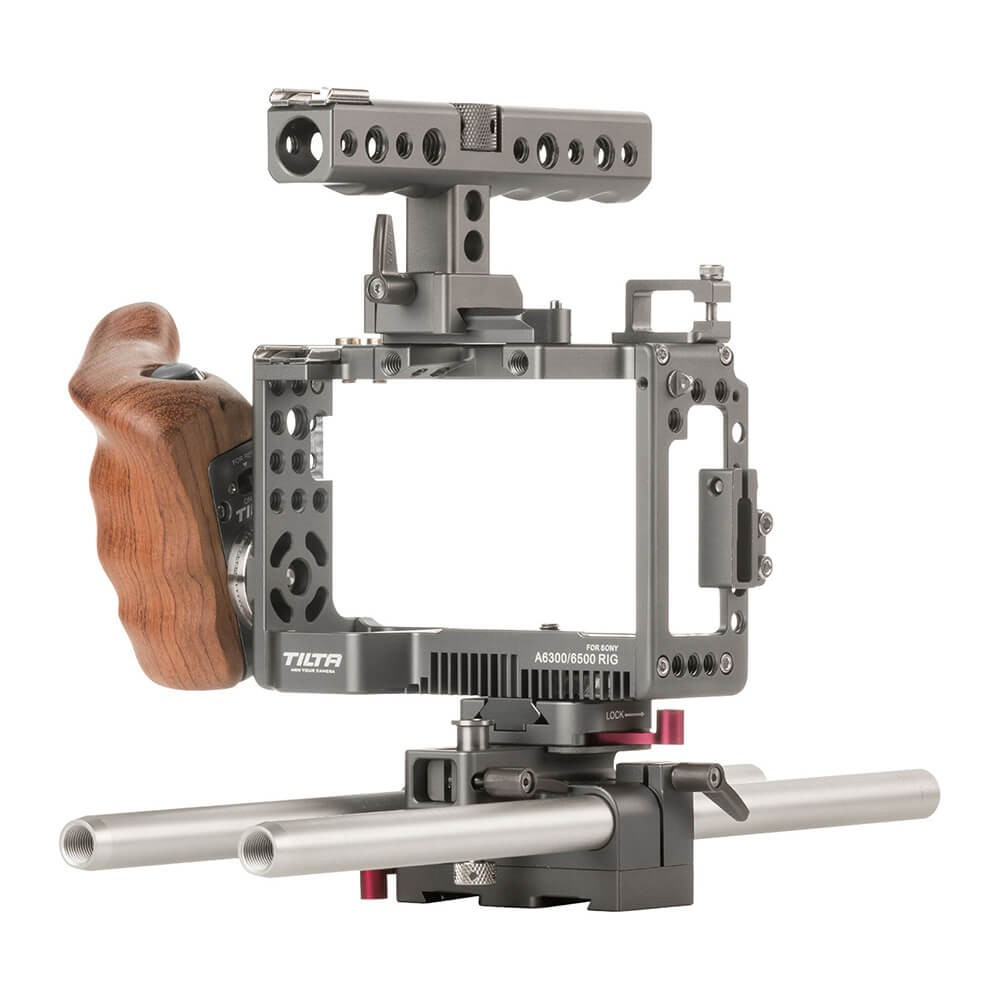

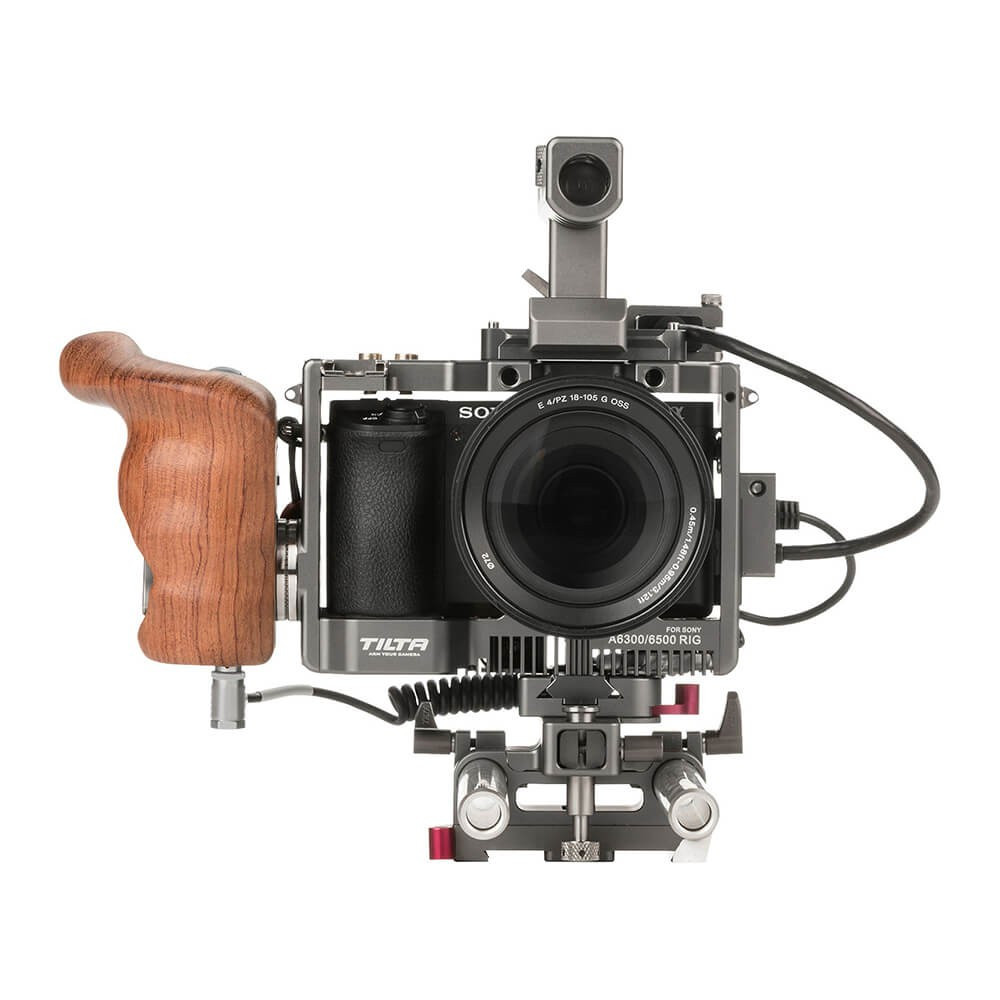

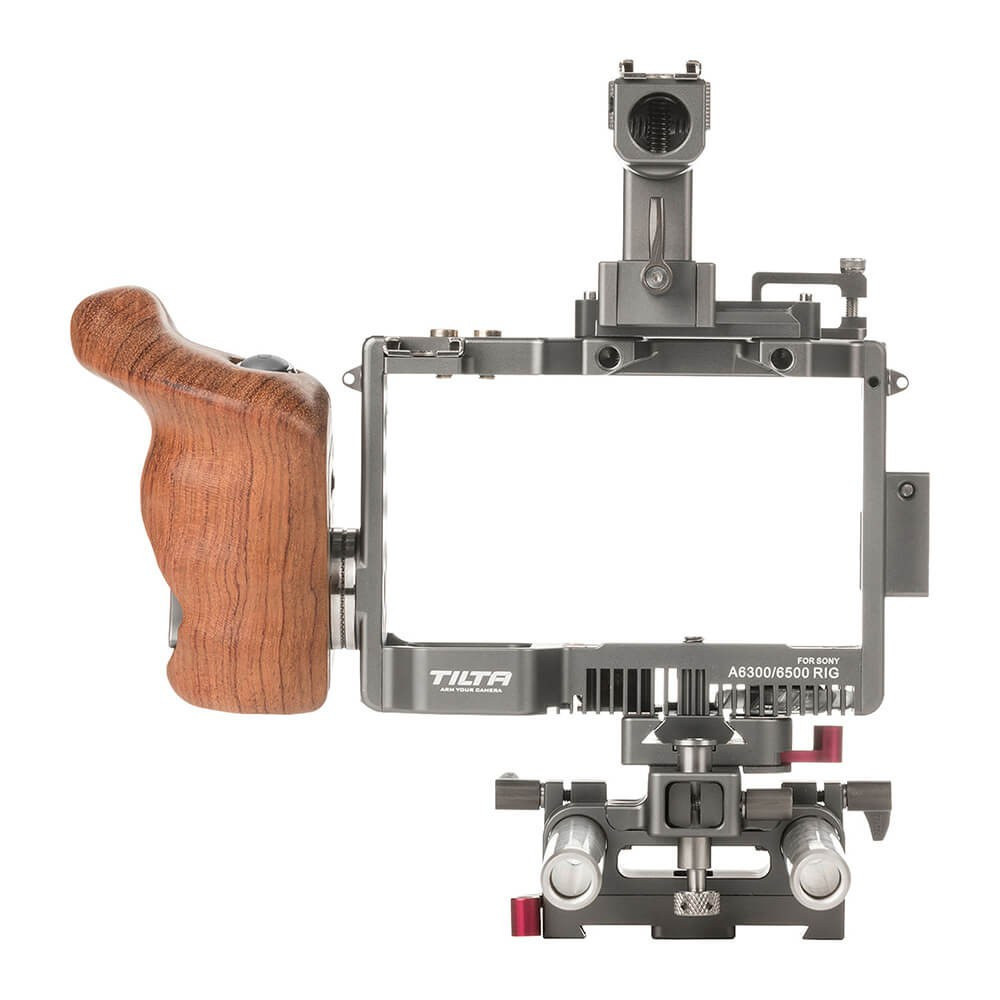

This versatile camera cage is designed for the Sony a6 series of cameras (a6000, a6300, a6500). It provides a high quality aluminum, CNC-milled protective armor for your camera that has several ¼”-20 and ⅜”-16 mounting points for attaching accessories. It’s designed to fit around the camera’s hot shoe mount as well as the battery and side input/output compartments.

A detachable top handle is included and features a cold-shoe mounting point (an additional cold shoe mount is on the top of the cage itself). This handle easily slides on and off of a small NATO rail that’s attached to the top of the cage.

On the bottom of the cage is a fan system with an on/off switch to help cool your camera if needed. Underneath the cooling system is a quick release plate that mounts to a 15mm LWS baseplate. This baseplate allows you to attach various accessories via 15mm rods and can mount to a Tilta Standard Lightweight Dovetail Plate to allow you to easily slide on and off of an operating setup. The baseplate also has a lens adapter support bracket built in to allow a way to mount various lens adapters (support screws for Metabones EF and PL mount adapters are included).

An optional right-side wooden handle can be added to your order. This handle is beautifully hand-carved from solid wood and features a very ergonomic design. It includes a recording run/stop button built in as well as a R/S cable of your choice. The wooden handle is attached via an Arri Standard Rosette connection on the right side of the camera.

Packing list

1. (1) Tilta Camera Cage for Sony a6 Series
2. (1) Camera hex screw
3. (1) NATO rail for top handle
4. (1) Quick release top handle with finger-tightened screw
5. (1) Sony a6 quick release plate
6. (1) 15mm LWS baseplate + lens adapter support bracket
7. (1) Built-in cooling fan with on/off switch
8. (1) Elongated screw for Metabones EF lens adapters
9. (1) Elongated screw for Metabones PL lens adapters
10. (1) Top plate 15mm rod adapter
11. (1) Micro HDMI plug protector
12. (1) Standard HDMI plug protector
13. (3) Allen keys
14. (1) HDMI standard female to micro HDMI male cable
15. (2) 15 x 300mm rods
16. (1) Right Side Wooden Handle with R/S button  (optional)
17. (1) Run/stop cable for Sony a6  (optional)

Technical data

Weight: 1.73 lbs
Color: Gunmetal-gray
Material: Aluminum-alloy, stainless steel, copper
Rod System: 15mm LWS
