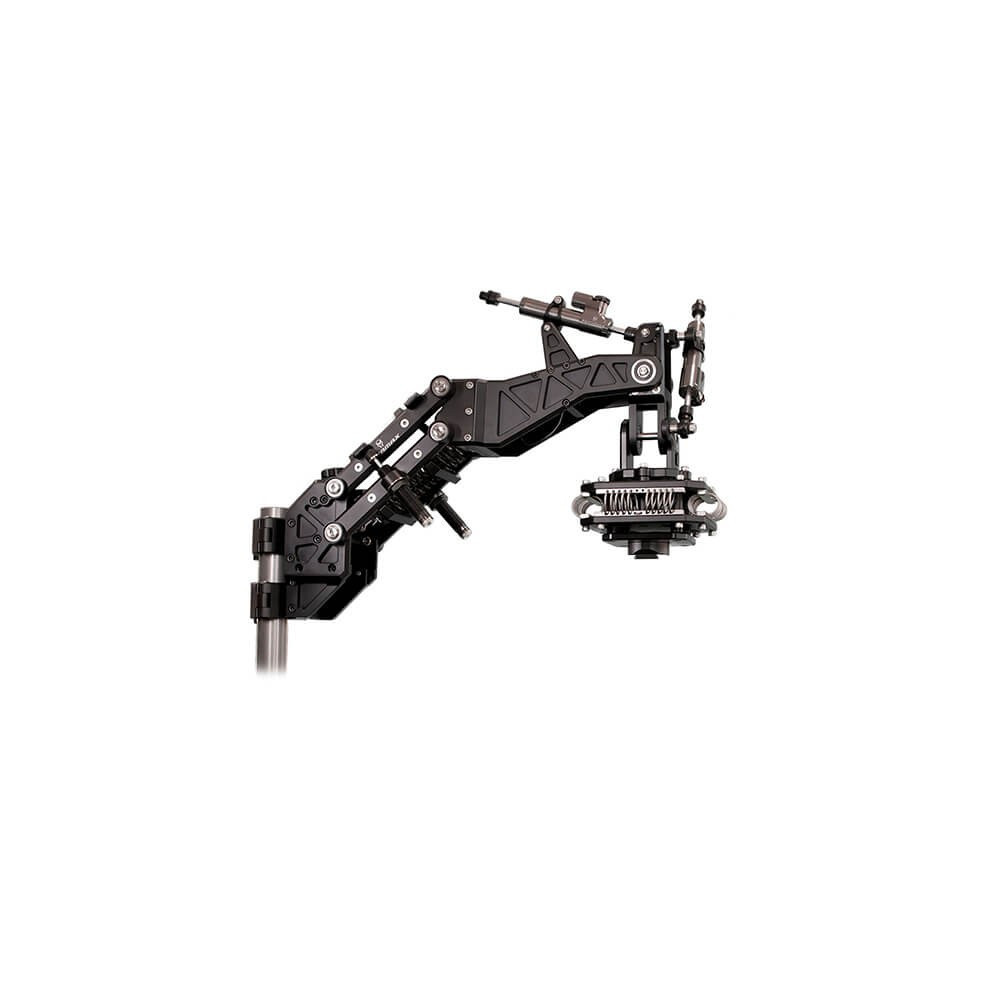

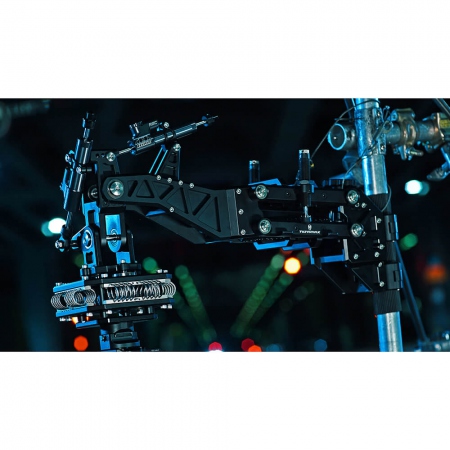

Tilta Shock Absorbing Arm

The Tilta Shock Absorbing Arm provides the ultimate experience in vehicular stabilization. The front arm is a hydraulic damping support system. Using two hydraulic cylinders, it can get ultra smooth shots even when stressed to its maximum payload capacity: 55lbs!

The Tilta Shock Absorbing Arm was engineered for high speeds. The faster you go, the more the arm will provide enhanced resistance, peak shock absorption, and stability. The built-in damping adjustment knob can be used to fine tune your rig for optimal calibration. The main car mount of the arm insulates the “after-shock” that can stem from the mounting equipment itself. Simply use one 1.5 inch speed rail (2 inch outer diameter) to connect it to any vehicle car mount rig, making it a highly flexible system to get a variety of car-mounted shots.

The Tilta Shock Absorbing Arm can handle various shooting environments via the main arm’s shock absorbing spring with built-in tension adjustment from 22lbs to 55lbs. The stainless steel shock absorbing cradle head is resistant to high temperatures and corrosion. Additionally, the cradle head provides hard damping adjustment knobs for side-to-side and back-to-front movement in order to sustain excessive shock from a fast-moving vehicle or uneven terrain.
The arm was built for the Tiltamax Gravity 3-Axis Gimbal. The cradle head is equipped with Tilta’s signature Tilta Gravity Adapter Mount. Quickly and easily slide the Gravity onto the arm and you are ready to go! The kit also includes Movi and Ronin 2 adapter mounts.

The Tilta Shock Absorbing Arm comes complete with a rolling hard shell waterproof safety case with custom foam inserts. Combined with Tilta’s other filmmaking accessories like the Nucleus Series Wireless Follow Focus Systems and Wireless HD Video Transmission Systems as well as 1A Tools’ Alpha Wheels, and, you’ll be an unstoppable filmmaking machine!

Packing List

1. (1) Main arm car mount
2. (1) Main arm shock absorbing spring
3. (1) Shock absorbing cradle head
4. (1) Front arm hydraulic damping pole
5. (1) Gravity Adapter Mount
6. (1) Movi Adapter Mount
7. (1) Ronin 2 Adapter Mount
8. (1) Tilta Shock Absorbing Arm Hard Shell Waterproof Safety Case

Technical Data
Weight: 28.8 lbs
Payload: 10kg-25kg  (22lbs-55lbs)
Diameter of Pipe Needed for Mounting: 2 inch outside diameter (AKA 1.5 inch speed rail)
Color: Black
Materials: Aluminum-alloy, stainless-steel
