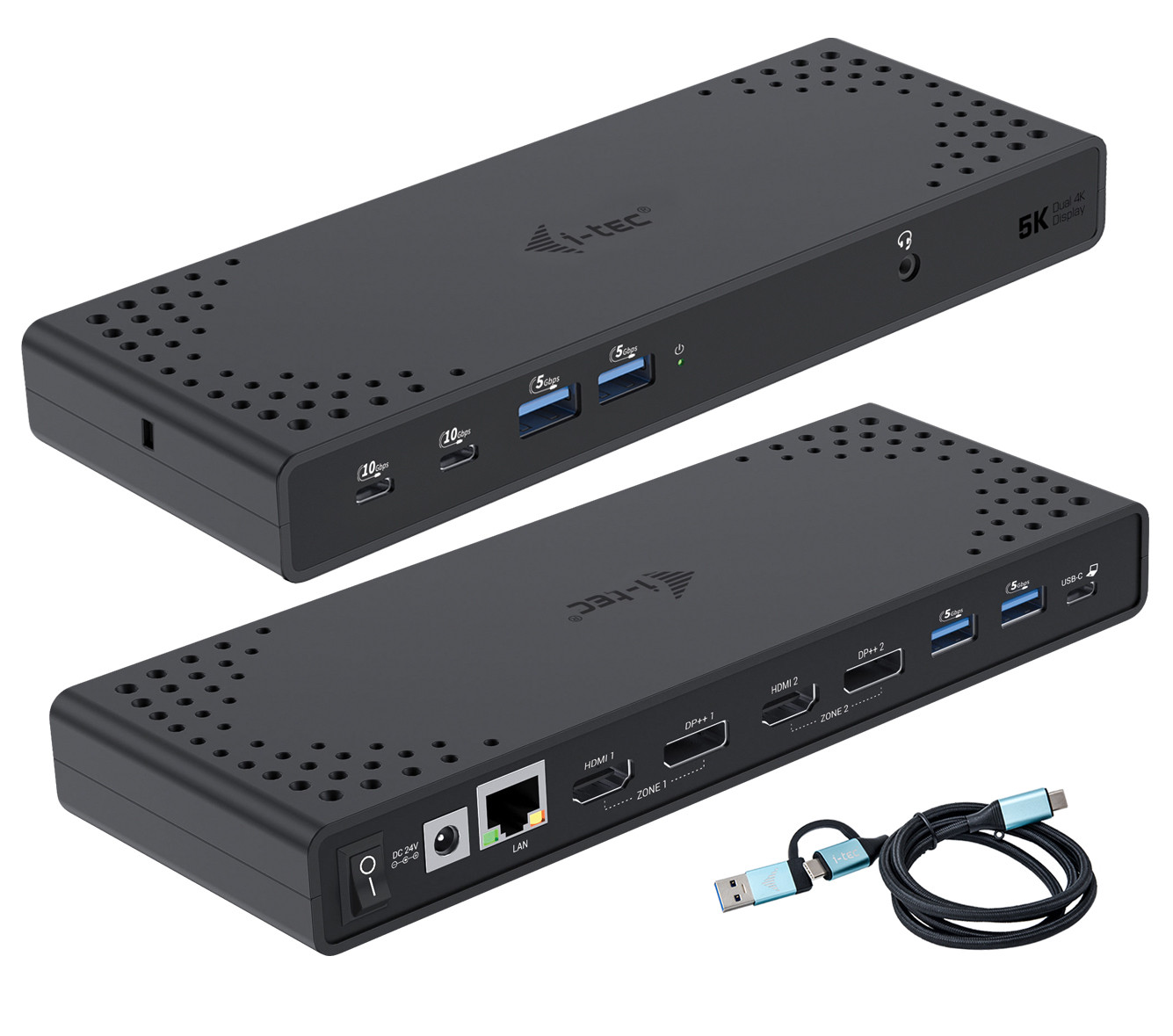

i-tec USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station Gen2 + Power Delivery 100W

• Universal docking station compatible with laptops and tablets with USB-C, USB-A, and Thunderbolt interfaces.

• 2x DisplayPort and 2x HDMI supporting up to two 4K/60Hz displays (also applicable for Apple M1/M2 platform) or one 5K/60Hz display.

• 6x USB ports including 4x USB-A 3.0 (1x fast charging BC 1.2) and 2x USB-C Gen2 (10 Gb/s), facilitating the connection of multiple USB devices and peripherals for super-fast data transfer.

• Provides up to 100W Power Delivery for compatible laptops and tablets with USB-C and Thunderbolt interfaces. The host device must support USB-C Power Delivery.

• GLAN Ethernet supports network speeds of 10/100/1000 Mb/s, providing robust and high-speed internet connectivity.

• Separate 3.5mm audio input and output connectors for easy connection of headsets or speakers.

• Includes a VESA mount to help keep your desk organized and eliminate cable clutter, along with a K-lock slot for added security.**

• 1x USB-C port for connecting to the host device with USB-C or USB-A port (cable USB-C and adapter from USB-C to USB 3.0 is included)
• Docking station technology: DisplayLink
• Power Delivery: 100W

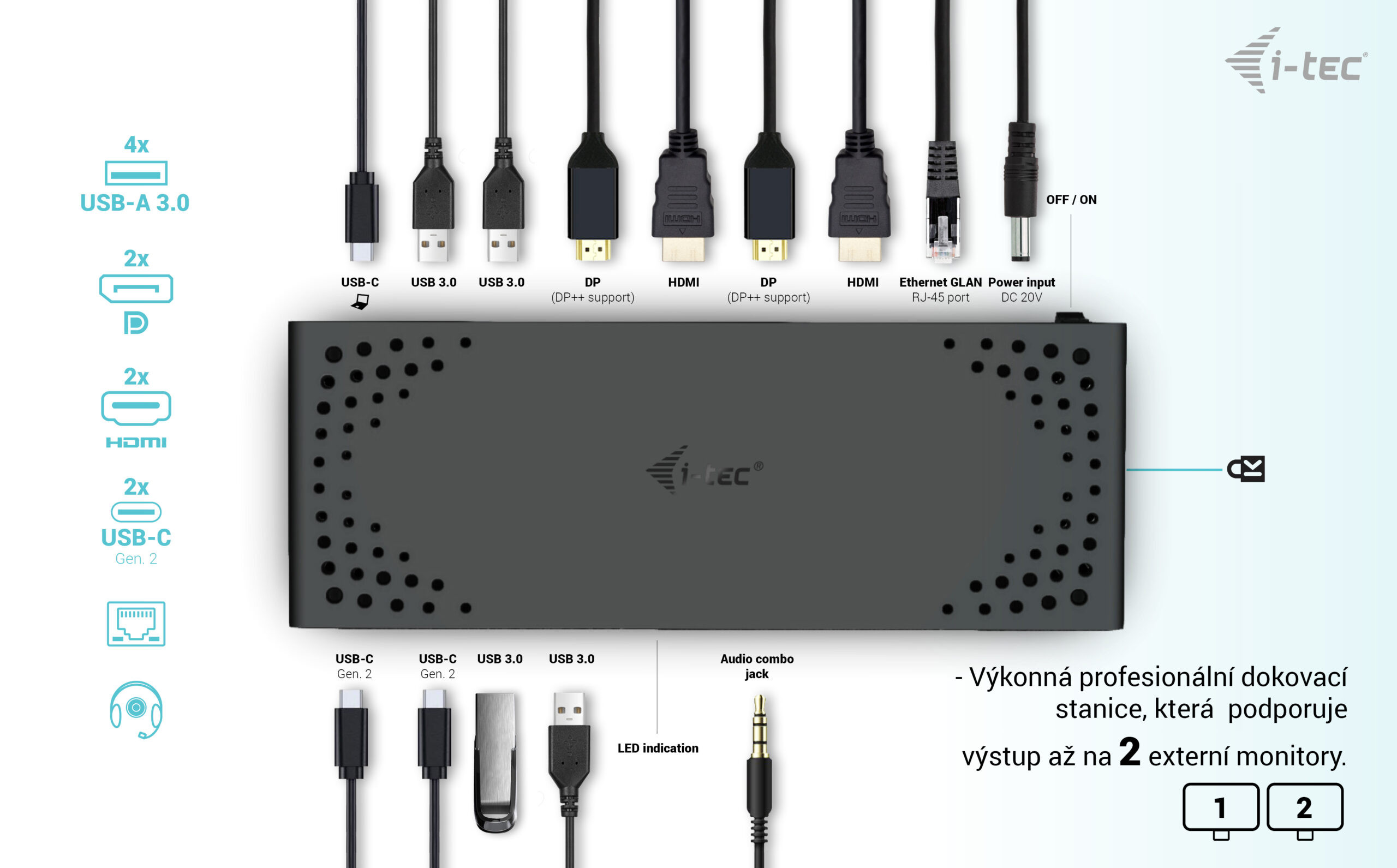

• Video Ports:
  • 2x Display Port (DP++ support)
  • 2x HDMI
• Supported Resolutions:
  • 1 monitor - 1x DP - up to 4K/60Hz
  • 1 monitor - 1x HDMI - up to 4K/60Hz
  • 1 monitor - 2x DP - up to 5K/60Hz*
  • 2 monitors - 1x DP + 1x DP - up to 2x 4K/60Hz
  • 2 monitors - 1x DP + 1x HDMI - up to 2x 4K/60Hz
  • 2 monitors - 1x HDMI + 1x HDMI - up to 2x 4K/60Hz
• 2x USB-C 3.2 Gen2 (10 Gbps) port
• 3x USB 3.0 port
• 1x USB 3.0 port with fast charge support (BC 1.2)
• 1x Ethernet GLAN RJ-45 port (DisplayLink DL-6950)
• 1x 3.5 mm Combo Audio port
• 1x Power input (DC 20V/6,75A)
• MAC Address cloning: Yes (using i-tec Docker Pro software)
• WOL: S1, S2, S3
• On/Off switch
• LED indicator
• Kensington lock support
• USB-C cable with USB-C to USB-A adapter(100 cm)
• OS:
• Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu
• Easy driver installation (Windows, MacOS, Ubuntu, Android (external link))
• Product dimensions: 224 x 88 x 27 mm
• Product weight: 330 g
• Package dimensions: 250 x 250 x 50 mm

 Hardware requirements:

• Devices with a free USB-A, USB-C or Thunderbolt™ 3/4 port

Requirements for the Power Delivery function:

• Devices with a free USB-C or Thunderbolt™3 port with "Power Delivery” support

Operating system:

• Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu

If the docking station is connected via USB 3.0, charging of laptops and tablets is not supported

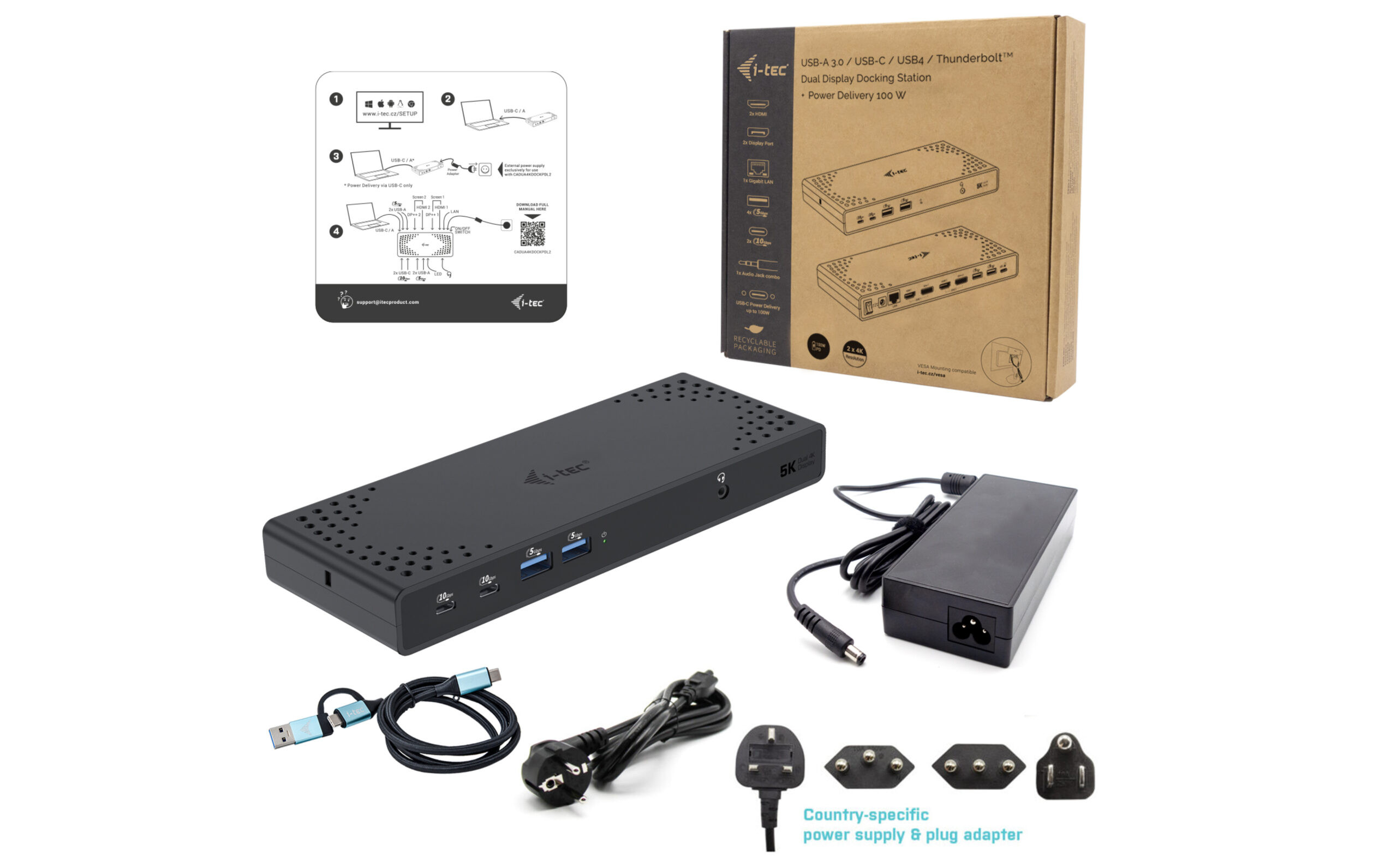

PACKAGE CONTENTS

• Product
• Power adaptor 135W
• Kabel USB-C to USB-C/USB-A (100 cm)
• Manual
