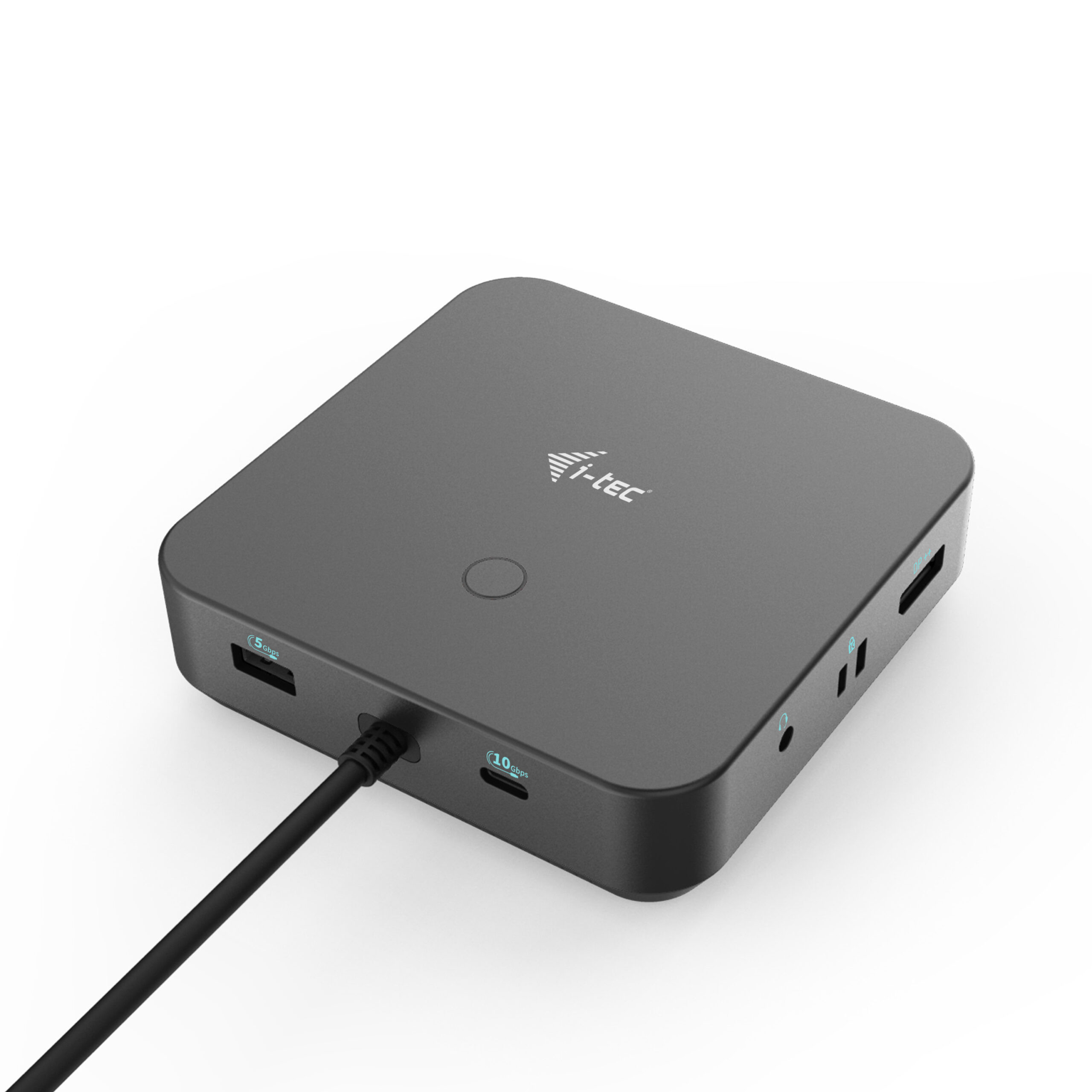

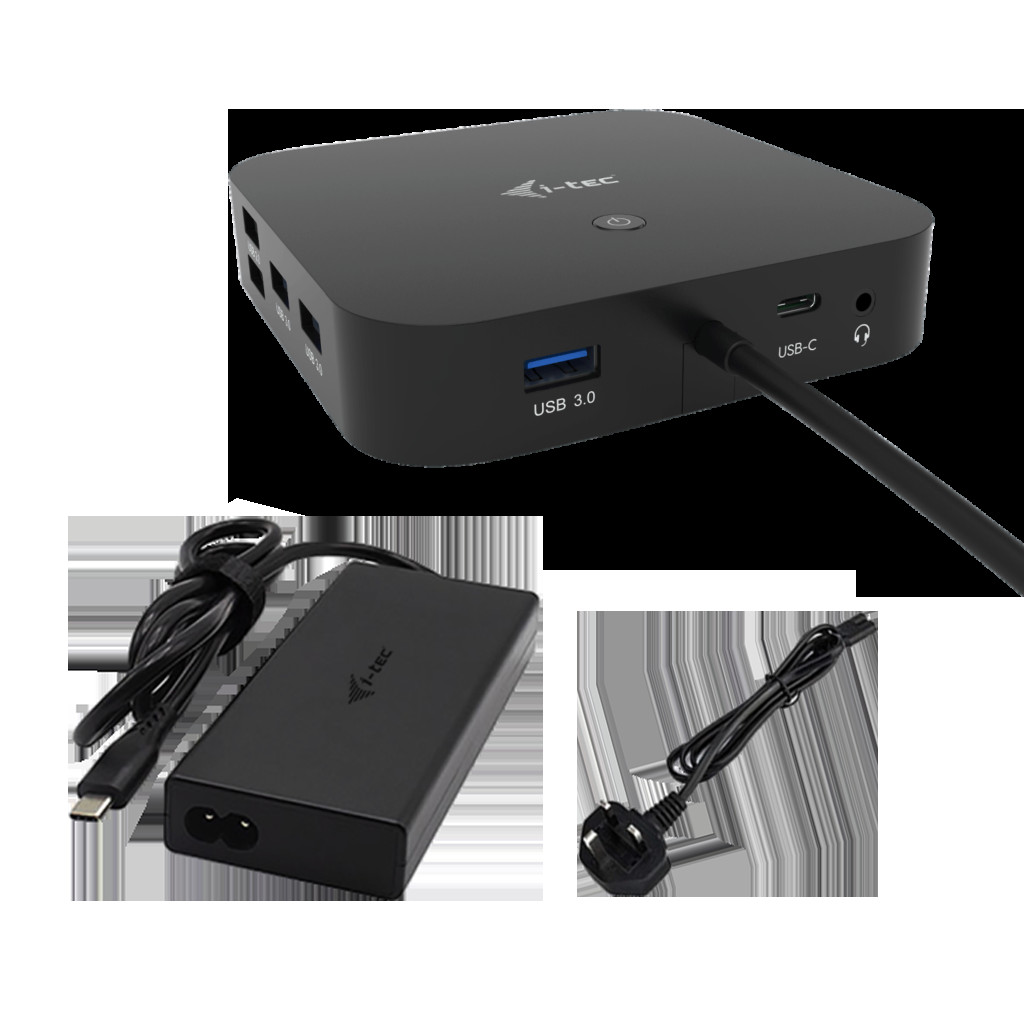

i-tec USB-C HDMI Dual DP Docking Station with Power Delivery 100 W + i-tec Universal Charger 100 W

A high-performance USB-C office dock that supports up to 3x external 4K monitors. The dock is compatible with any laptop equipped with a USB-C, USB4 or Thunderbolt 3/4 port. Of course, it supports charging of your laptop or tablet, up to 100 W.The integrated latest DP 1.4 DSC protocol also supports 5K/60 Hz resolution, which can be appreciated by professional graphic designers, data analysts, film editors or high-definition video lovers.

Note: macOS operating system does not support Multi Stream Transport (MST) video transfer technology, which means that if connected to macOS, the same image will be projected on both connected monitors.

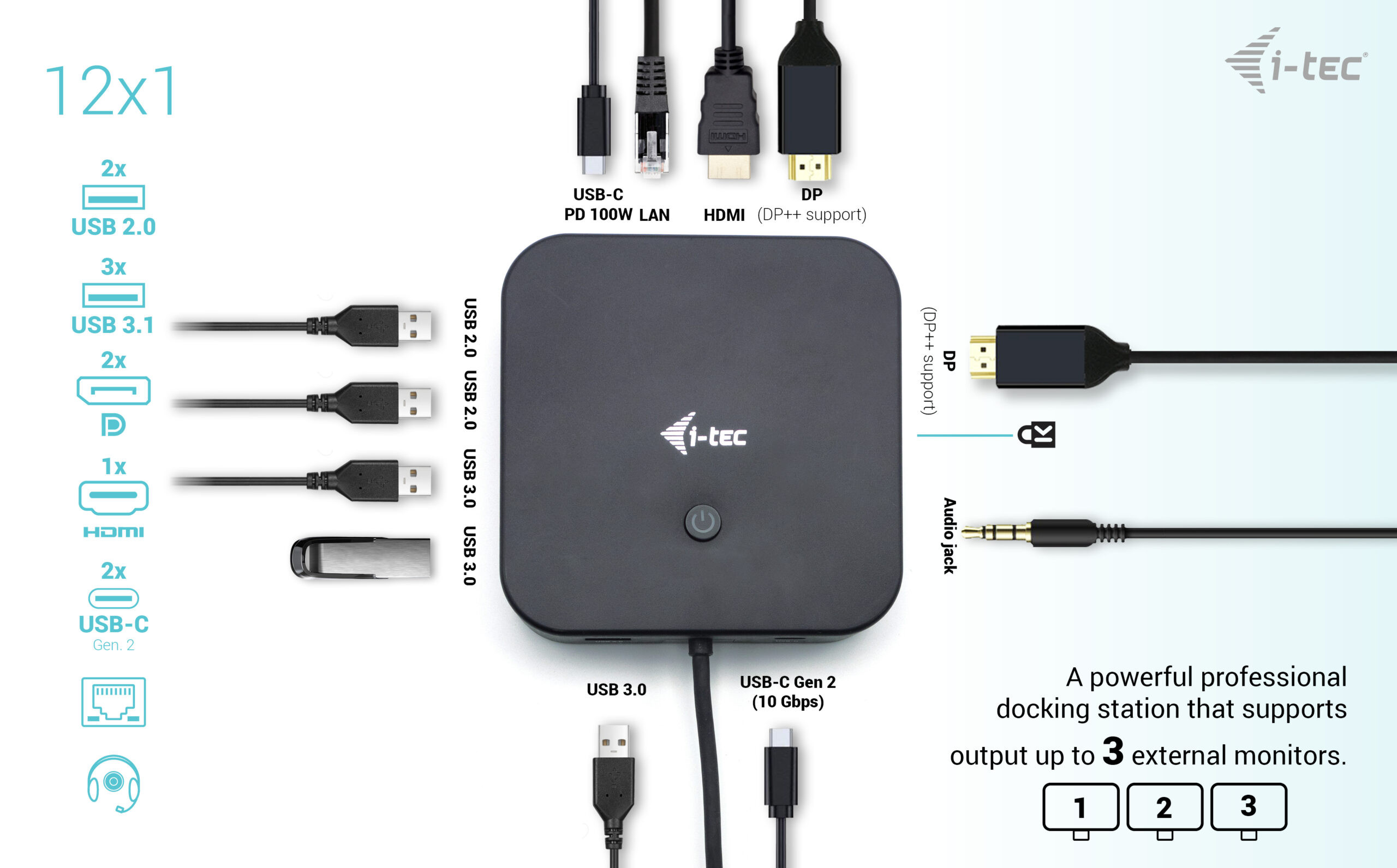

• Connect up to three external 4K/30Hz monitors
• Refresh rate up to 360Hz (when connected to a single 1080p monitor)
• Power delivery: up to 100W
• 1x HDMI, 2x DisplayPort++
• 3x USB 3.1, 1x USB-C 3.2 Gen2 (10 Gbps) and 2x USB 2.0 allow you to easily connect your USB devices and peripherals. Gigabit Ethernet RJ-45 provides a reliable, robust and high-speed
• Internet connection with 10/100/1000 Mbps support
• Combination audio and microphone jack on the front panel
• Kensington lock provides anti-theft protection, especially in shared office environments or public areas
• Docking station power switch allows for maximum power savings
• Docking station supports a VESA mount for smart vertical installation behind a VESA-enabled monitor
• Supports Windows 10, macOS, Android, iPadOS, ChromeOS and Linux

We recommend using the docking station with a power adapter connected to ensure that all ports are used and that maximum data transfer speeds are achieved. (The adapter is included in the package).Note: If connected to an Android device, the dock will only work with the power adapter connected. (Adapter included).

• Compatible with USB-C, USB4 and Thunderbolt laptops & tablets. (The host device must support DisplayPort Alt mode).
• 2x DisplayPort++ and 1x HDMI supporting up to three 4K or a single 5K/60Hz display (depending on notebook performance). macOS supports a single extended display only.
• 6x USB-ports (5x USB-A, 1x USB-C) make it easy to connect multiple USB devices and peripherals.
• Provides up to 100W Power Delivery for compatible USB-C, USB4 and Thunderbolt laptops & tablets. The host device must support USB-C Power Delivery.
• GLAN Ethernet supports network speeds of 10/100/1000 Mbps speeds, providing a robust and high-speed internet connection.
• Combo 3.5 mm audio input/output jack for easy connection to headset or speakers.
• VESA bracket available to help keep your desk tidy and free from cables, plus K-lock slot for added security.
• Power-saving On/Off switch to reduce energy consumption when the docking station is not in use.
• Note: 100W power supply included.

DOCKING STATION

• 1x integrated USB-C cable for connection to devices (100 cm)
• Docking station technology: USB-C (MST)
• Power Delivery: up to 100 W
  • Internal power consumption: 5-10W (more info here)
• Video Ports: 2x DisplayPort (supports DP++), 1x HDMI

• Resolution:
• Host device with DisplayPort 1.2 support:
  • 1 monitor - 1x HDMI or DP- up to 4K/30Hz
  • 1 monitor - 1x HDMI or DP - up to 1080p/120Hz
  • 2 monitors - 1x DP + 1x HDMI - up to 2x 1080p/60Hz*
  • 2 monitors - 2x DP - up to 2x 1080p/60Hz*
  • 3 monitors - 1x HDMI + 1x DP + 1x DP - up to 1x 1080p/60Hz + up to 2x 720p/60Hz*
• Host device with DisplayPort 1.4 support:
  • 1 monitor - 1x HDMI - up to 4K/60Hz
  • 1 monitor - 1x DP - up to 4K/60Hz
  • 2 monitors - 1x DP + 1x HDMI - up to 2x 1440p/60Hz*
  • 2 monitors - 1x DP + 1x HDMI - up to 2x 4K/30Hz*
  • 2 monitors - 2x DP - up to 2x 4K/30Hz*
  • 3 monitors - 1x HDMI + 1x DP + 1x DP - up to 3x 1080p/60Hz*
• Host device with DisplayPort 1.4 with DSC support:
  • 1 monitor - 1x HDMI - up to 4K/60Hz
  • 1 monitor - 1x DP - up to 5K/60Hz
  • 1 monitor - 1x HDMI - up to 1440p/144Hz or 1080p/240Hz
  • 1 monitor - 1x DP - up to 4K/144Hz or 1440p/240Hz or 1080p/360Hz
  • 2 monitors - 1x DP + 1x HDMI - up to 2x 4K/60Hz*
  • 2 monitors - 1x DP + 1x HDMI or DP - up to 2x 1440p/144Hz*
  • 3 monitors - 1x HDMI + 1x DP + 1x DP - up to 3x 4K/30Hz*

• 1x USB-C 3.2 Gen. 2 port (10 Gbps)
• 1x USB-C 3.2 port Gen. 2 (10 Gbps) + PD (Power delivery)
• 3x USB-A 3.2 port Gen. 1 port (5 Gbps)
• 2x USB 2.0 port
• 1x Ethernet GLAN RJ-45 port (Realtek 8153B)
• 1x 3.5 mm Combo Audio port
• LED indication
• ON/OFF switch to turn the docking station on and off
• MAC Address cloning: Yes (using i-tec Docker Pro software)
• WOL: S1, S2, S3
• Support for Kensington lock
• OS: Windows 11, Windows 10, macOS*, iPadOS**, Android**, Chrome OS and Linux with latest updates
• Product dimensions: 113 x 113 x 31.2 mm
• Product weight: 340 g
• Package dimensions: 250 x 242 x 50 mm

  CHARGER:

• Universal 100 W USB-C power adapter for powering laptops, tablets, smartphones and other devices equipped with a USB-C charging port
• Input voltage AC 100-240 V, 50-60 Hz, max. 2.3 A
• Output power (max.): 100 W
• Efficiency: more than 86 %
• USB-C output voltage: DC 5 V / 9 V / 12 V / 15 V / 19 V / 20 V
• USB-C output current: max. 5A
• Protection against current overload, overvoltage, short circuit and overheating.
• Operating temperature: 0 °C - 40 °C
• Relative humidity: 10 % - 100 %

Hardware Requirements:

• Device with a free USB-C, USB4 or Thunderbolt™ 3/4 port

Power Delivery Requirements:

• Device with a free USB-C, USB4 or Thunderbolt™ 3/4 port with Power Delivery support

Video Output Requirements:

• Device with a free USB-C or USB4 port with DisplayPort Alternate Mode support or a Thunderbolt™ 3/4 port

Operating System:

• Windows 10 / 11, macOS*, iPadOS**, Android**, Chrome OS and Linux with latest updates

PACKAGE CONTENTS

• Product
• Manual
• USB-C 100W Charging Adapter
