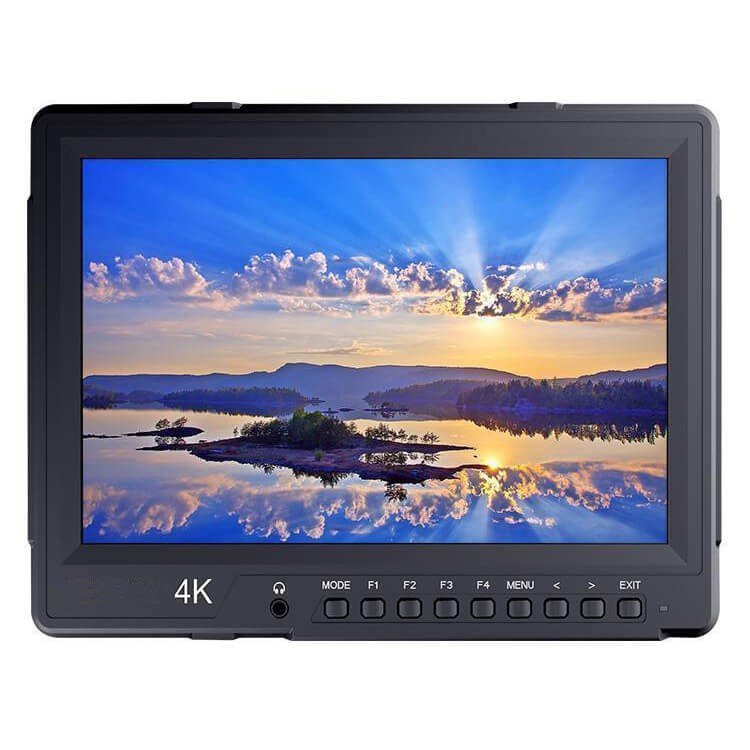

SEETEC Monitor 10,1" 4K HDMI INPUT, SDI IN & OUTPUT

SEETEC Monitor 10,1" 4K

• Wide view angle, 2K resolution (2560 x 1600), bright, colorful display
• HDMI2.0, 3G-SDI inputs and 3G-SDI loop-through output

Advanced Features

1. Quad Split Display (1P, 2P LR, 2P TB, 2P PIP)
2. Peaking Focus Assist
3. Overscan
4. Display Rotate (0°, 90°, 180°, 270°)
5. Check Field (Red, Green, Blue, Mono)
6. Image Freeze
7. Zoom
8. Pixel to Pixel
9. Center Marker
10. Screen Marker (80%, 85%, 90%, 93%, 96%)
11. Line Color (Red, Green, Blue, White）
12. Color Temperature Adjustment
13. Built-in LED tally indicators (Red, Green, Yellow)

Standard Accessories:
1× Mini HDMI Cable
1× Sunshade
1× Hot Shoe Mount
1× F970 Battery Plate
1× Tally Kit
1× U bracket
1× Operation Manual

Display Spec.
Screen Size     10.1" IPS
Color Depth     16.2M, 8bit (6bit+FRC)
Resolution     2560×1600 pixels
Pixel Pitch     0.0423 (H) × 0.0846 (V) mm
Aspect Ratio     16:10
Brightness     370cd/m²
Contrast Ratio     800:1
Backlight     LED
Viewing Angle     89°/89°(L/R) 89°/89°(U/D)

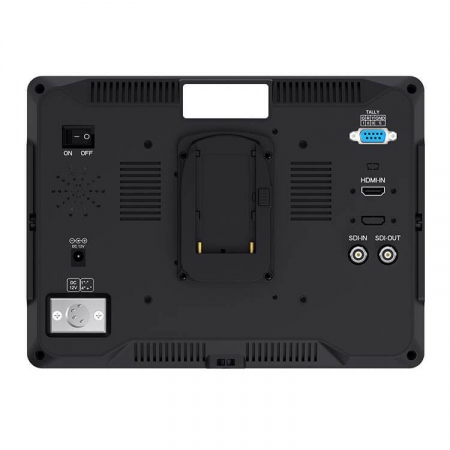

Input
1 X HDMI     HDMI2.0 (Support 4K 60HZ)
1 X BNC     3G-SDI
1 X DB-9     Tally
Output
1 X BNC     3G-SDI
Audio     Headphone, Speaker
SDI Support Format
480i/576i
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
 HDMI Support Format
480i/576i/480p/576p
720p (60/59.94/50/30/29/25/24/23.98)
1080i (60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
4K UHD 2160p (60/50/30/29.97/25/24/23.98)
 General
Input Voltage     DC7～24V
Power Consumption     ≤12W
Working Temperature     -10°C~50°C
Storage Temperature     -20°C~60°C
Unit Size (mm)     258L×190H×36D (mm)
Unit Weight     680g, 710g (With Battery Plate)
