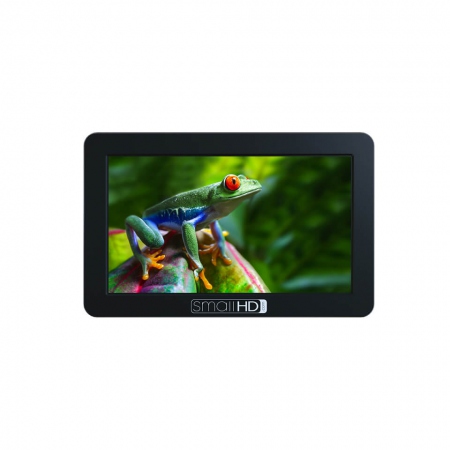

SMALLHD FOCUS 5" SDI Monitor KIT

FOCUS 5" SDI Monitor Kit
5-inch Daylight Viewable Monitor with SmallHD Tilt-Arm
Camera-top LCD monitor with full-size SDI input. (Includes Tilt Arm)

Easy to see, easy to rig.
The SmallHD FOCUS SDI monitor provides a daylight viewable display in a convenient form factor. Easily attach the FOCUS to your camera or rig using the included SmallHD Tilt Arm: a lightweight, camera-top mounting solution.

Simple, convenient power.
The FOCUS SDI monitor has an integrated, center-aligned, Sony L Series battery plate. Users will enjoy hours of monitor use (at full brightness) without having to swap batteries.

Powerful tools at your fingertips.
Beyond the impressive hardware features of the FOCUS, is SmallHD OS3: a professional software toolset with an easy to manage, touchscreen interface. High resolution Scopes, Waveform, False Color, Focus Peaking, and real-time 3D LUTs are just some of the tools you can easily customize and access quickly.

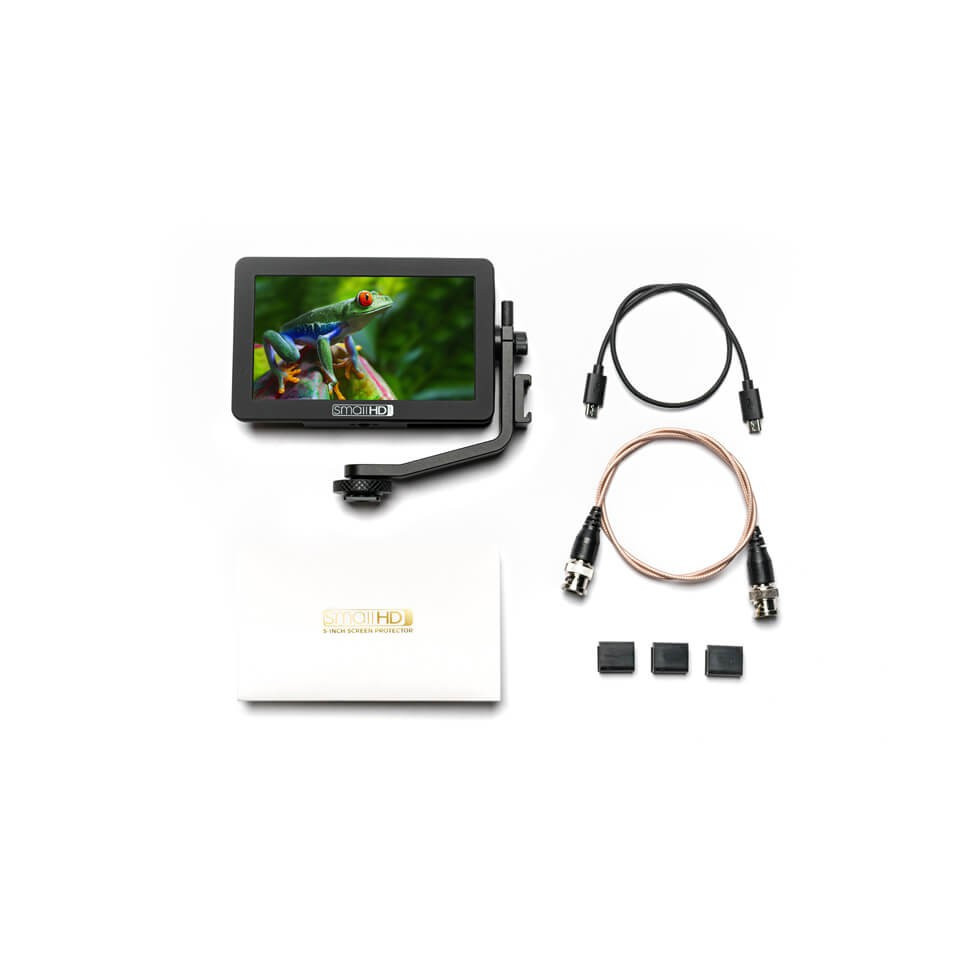

Ships with
FOCUS 5" SDI Monitor QTY 1
FOCUS Tilt Arm QTY 1
UltraClear Screen Protector QTY 1
24-inch Thin SDi Cable QTY 1
Micro USB to Micro USB 12" Cable

Display
Panel Type    IPS LCD Touchscreen
Size Diagonal    5
Resolution    1280x720
Pixel Density (PPI)    294
Aspect Ratio    16:9
Active Area    5
Brightness    800 nits
Color Gamut    70% NTSC
Color Depth    10-bit processing
Viewing Angle    160 Degrees
Backlight Type    White LED
Adjustable Backlight    Yes
Temperature Adaptive Color    No

Input Signal Types/Formats
3G-SDI    YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50
HD-SDI    RGB/YCC 4:2:2 and 4:4:4, 1080p60, 1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
SD-SDI    YCC 4:2:2 @ 10-bits: 480i29.97, 576i25
HDMI    Not Supported
Component    Not Supported
Composite    Not Supported
Audio    SDI

Output Signal Types/Formats
3G-SDI    Not Supported
HD-SDI    Not Supported
SD-SDI    Not Supported
HDMI    Not Supported
Component    Not Supported
Composite    Not Supported
Audio    Stereo Out (headphones)

Connector Type
SDI    1x Full-Size-SDI Input
Audio    â…›” Stereo mini-jack
Power In    1x Sony L-Style Battery slot
Power Out    Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.
USB    1x Micro-USB for future use

Controls
Primary Control Interface    Capacitive Touchscreen
Record/Capture    Capture Tool
Data I/O
Storage    SD Card for Image Capture / Overlay, LUT Loading, Firmware Upgrades
Wireless    Compatible with SmallHD BTR1 Wireless Remote

Power
Connector Type    1x Sony L-Style Battery slot, 1x barrel connector for powering camera
Voltage    6.0 - 8.4V
Power Consumption    5.04W
Recommended Power Supply    Battery Only Device
Overload Protection    Yes
Battery Chemistry    Li-ion
Output Voltage (VDC)    Mirrors Input Voltage from battery
Battery Capacity (mAh)    2000mAh - 6300mAh
Battery Charging Time (hours)    Monitor does not support the charging of batteries

Environmental
Compliance    CE, FCC, IC
Operating Temperature    32F to 158F
Screen Protection    Ships with UltraClear Screen Protector
Height    3.34" (8.48cm)
Width    5.24" (13.31cm)
Depth/Length    .98" (2.49cm)
Weight (Item Only without battery)    6.6oz (187.11g)
Weight (Packaged)    4.17oz (118.22g)
Mount Points    (3) ¼-20 thread points (top, bottom, & right side)

Software
Pixel Zoom (type)    2x & 4x with smooth pan via pinch zoom gesture
Frame Guides    Preset Aspect Ratios & Customizable
DSLR Scale    Canon 5DMkii & Canon 7D
Custom Scale    Underscan Only
Anamorphic De-Squeeze    1.33x, 1.5x, 1.66x, 2.0x
Image Rotate(Manual/Automatic)    Automatic or Manual Control
Image Flip (Manual/Automatic)    Automatic or Manual Control
Focus Assist (Colors)    User Adjustable Color Style and Intensity
Peaking    User Adjustable Intensity
False Color    Spectrum, Arri Style and Fully User Customizable
Zebra    Dual - User Configurable
Waveform    Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting
Vectorscope    Yes
PIP    No
RGB Parade    Fully User Customizable
Histogram    Luma & RGB Style
Horizon Indicator    No
Image Capture    With Dedicated Button and Image Gallery
Custom LUTS    Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu
LUT Creation    No
LUT Downstream    Applied on Output Preview Page
LUT Import    Via SD Card or USB Storage Device
Image Overlay    Opacity Slider and Blink Setting
Blue Only    No
Audio Meters    Up to 8 channel
