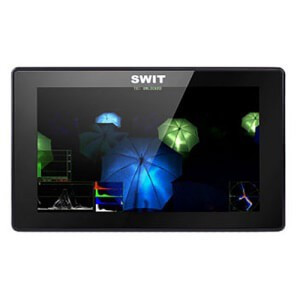

SWIT S-1053F(LUX) 5,5" LCD w/Deluxe kit,no plate
Gebyr kr. 0
S-1053F(LUX) 5,5" LCD w/Deluxe kit,no plate
- 5.5” Optical bonding LCD, 1920×1080
- All metal housing, thinner and robust
- 2K/3G/HD/SD-SDI input and loop out
- HDMI input and converted to SDI out
- 16-ch Embedded audio meters with alert
- Select any 2 audio channels to output
5.5-inch Full HD LCD - Optical bonding
The S-1053F adopts a 5.5-inch LCD panel with LED backlight, optical bonding technical. The native resolution is Full HD 1920×1080, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°
All Metal Housing
S-1053F adopts aluminium alloy housing, thinner and robust, suitable for outdoor on-camera video monitoring.

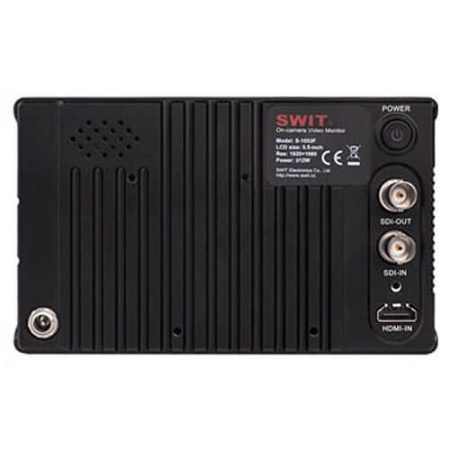

Input/Output Interfaces - SDI & HDMI
S-1053F monitor supports:
2K/3G/HD/SD-SDI input × 1
2K/3G/HD/SD-SDI loop output × 1
HDMI input × 1 (with lock)
HDMI to SDI output × 1 (share SDI loop port)
Micro USB × 1 (firmware upgrade)
3.5mm analog audio output × 1
Build-in HDMI to SDI Conversion
S-1053F supports build-in HDMI to SDI conversion; share the SDI loop output port. It’s same format conversion and supports the following HDMI formats: 480i, 576i, 720p (60 / 59.94 / 50), 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98) Note: When both SDI and HDMI input, if the current display source is SDI, the SDI output port is SDI loop; and if the current display source is HDMI, the SDI output port is HDMI conversion output.
9-step Quick Zoom-in - Up/Down/Left/Right mapping
Assign the zoom-in mode to any of the F keys, and enable zoom-in mode. Scroll the menu key you can quickly zoom in the video by the following rates: 1.2x, 1.5x, 1.8x, 2.0x, 2.4x, 2.6x, 2.8x, 3.0x, without black waiting.
Press the menu key to switch to Left/Right mapping function, and press again to switch to Up/Down mapping, and press again to switch to focus assist precision adjustment. (Enable focus assist function first)
3DLUT Log to Rec709 - User LUT cube import
S-1053F monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2ï¼ S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick (via Micro-USB OTG), support 17x17x17 3DLUT cube files.
Video Analysis Assistant Pattern - Waveform / Vector scope / Histogram
S-1053F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Color, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, color, and translucence.
Specifications
Size 5.5 inches
Display area 120.96×68.04mm
Resolution 1920×1080
Aspect ratio 16:9 (4:3 adjustable)
Brightness 400cd/m2
Contrast 1000:1
Color 16.77 million colors
Viewing angle Horizontal: 160°; Vertical: 160°
Input
BNC ×1
2K/3G/HD/SD-SDI input
HDMI-A ×1 HDMI 1.3 input
Micro USB ×1 Firmware upgrade
Output
BNC ×1
2K/3G/HD/SD-SDI loop output or HDMI converted to SDI output
3.5mm ×1
SDI, HDMI embedded audio output
Video Format
SDI
2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50)
1080i (60 / 59.94 / 50)
1080p (30 / 29.97 / 25 / 24 / 23.98)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94)
576i (50)
HDMI
480i/ 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
General
Input voltage DC / battery 6.5V-36V
Power consumption 12W
Working temperature -10°Cï½+50°C
Working humidity 10%ï½90%
Storage temperature -15°Cï½+60°C
Storage humidity 10%ï½90%
Dimensions 151×91×32mm
Net weight (main body) 375g
What´s in box
Sun hood
D-tap to lockable Pole-tap cable
Luxury package includes additional:
1x AC-DC lockable power adaptor
1x Cold shoe / Screw Articulating Arm trestle
1x Lockable HDMI cable (80cm)
1x flannelette bag for monitor
1x Carrying case
